moq.h File Reference

Media Over QUIC (MoQ) stack (headers) More...

#include <stddef.h>
#include <stdint.h>
#include <glib.h>
#include "../imquic/imquic.h"
#include "../imquic/moq.h"
#include "utils.h"
#include "buffer.h"
#include "qlog.h"
#include "refcount.h"

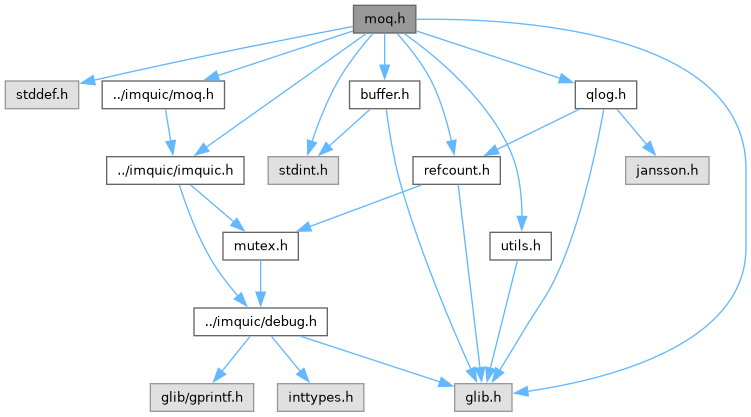

Include dependency graph for internal/moq.h:

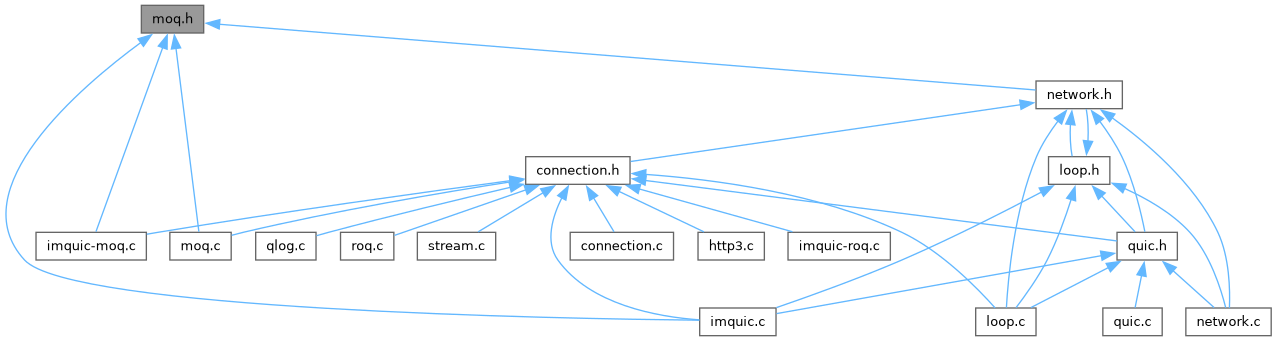

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	imquic_moq_setup_options
	MoQ setup parameters. More...
struct	imquic_moq_context
	MoQ context. More...
struct	imquic_moq_stream
	MoQ stream. More...
struct	imquic_moq_subscription
	MoQ subscription, whether this is a publisher or a subscriber. More...
struct	imquic_moq_callbacks
	MoQ public callbacks. More...

Macros
#define	IMQUIC_MOQ   7171953

Typedefs
typedef enum imquic_moq_message_type	imquic_moq_message_type
	MoQ messages.
typedef enum imquic_moq_datagram_message_type	imquic_moq_datagram_message_type
	MoQ datagram messages.
typedef enum imquic_moq_data_message_type	imquic_moq_data_message_type
	MoQ STREAM data messages.
typedef enum imquic_moq_fetch_subgroup_type	imquic_moq_fetch_subgroup_type
	MoQ FETCH subgroup flags.
typedef enum imquic_moq_setup_option_type	imquic_moq_setup_option_type
	MoQ setup option type.
typedef enum imquic_moq_request_parameter_type	imquic_moq_request_parameter_type
	MoQ request parameter types.
typedef struct imquic_moq_setup_options	imquic_moq_setup_options
	MoQ setup parameters.
typedef enum imquic_moq_fetch_type	imquic_moq_fetch_type
	MoQ FETCH types.
typedef struct imquic_moq_context	imquic_moq_context
	MoQ context.
typedef enum imquic_media_stream_request_state	imquic_media_stream_request_state
	MoQ stream request state.
typedef struct imquic_moq_stream	imquic_moq_stream
	MoQ stream.
typedef struct imquic_moq_subscription	imquic_moq_subscription
	MoQ subscription, whether this is a publisher or a subscriber.
typedef struct imquic_moq_callbacks	imquic_moq_callbacks
	MoQ public callbacks.

Enumerations
enum	imquic_moq_message_type {   IMQUIC_MOQ_REQUEST_OK = 0x7 , IMQUIC_MOQ_REQUEST_ERROR = 0x5 , IMQUIC_MOQ_REQUEST_UPDATE = 0x2 , IMQUIC_MOQ_SUBSCRIBE = 0x3 ,   IMQUIC_MOQ_SUBSCRIBE_OK = 0x4 , IMQUIC_MOQ_PUBLISH_NAMESPACE = 0x6 , IMQUIC_MOQ_PUBLISH_NAMESPACE_DONE = 0x9 , IMQUIC_MOQ_UNSUBSCRIBE = 0xa ,   IMQUIC_MOQ_PUBLISH_DONE = 0xb , IMQUIC_MOQ_PUBLISH_NAMESPACE_CANCEL = 0xc , IMQUIC_MOQ_TRACK_STATUS = 0xd , IMQUIC_MOQ_GOAWAY = 0x10 ,   IMQUIC_MOQ_SUBSCRIBE_NAMESPACE = 0x50 , IMQUIC_MOQ_SUBSCRIBE_NAMESPACE_v17 = 0x11 , IMQUIC_MOQ_SUBSCRIBE_TRACKS = 0x51 , IMQUIC_MOQ_NAMESPACE = 0x8 ,   IMQUIC_MOQ_NAMESPACE_DONE = 0xe , IMQUIC_MOQ_PUBLISH_BLOCKED = 0xf , IMQUIC_MOQ_MAX_REQUEST_ID = 0x15 , IMQUIC_MOQ_REQUESTS_BLOCKED = 0x1A ,   IMQUIC_MOQ_FETCH = 0x16 , IMQUIC_MOQ_FETCH_CANCEL = 0x17 , IMQUIC_MOQ_FETCH_OK = 0x18 , IMQUIC_MOQ_SETUP = 0x2F00 ,   IMQUIC_MOQ_CLIENT_SETUP = 0x20 , IMQUIC_MOQ_SERVER_SETUP = 0x21 , IMQUIC_MOQ_PUBLISH = 0x1D , IMQUIC_MOQ_PUBLISH_OK = 0x1E }
	MoQ messages. More...
enum	imquic_moq_datagram_message_type {   IMQUIC_MOQ_OBJECT_DATAGRAM = 0x01 , IMQUIC_MOQ_OBJECT_DATAGRAM_STATUS = 0x20 , IMQUIC_MOQ_OBJECT_DATAGRAM_RANGE_MIN = 0x00 , IMQUIC_MOQ_OBJECT_DATAGRAM_RANGE_MAX = 0x2D ,   IMQUIC_MOQ_PADDING_DATAGRAM = 0x132B3E29 }
	MoQ datagram messages. More...
enum	imquic_moq_data_message_type {   IMQUIC_MOQ_SUBGROUP_HEADER = 0x10 , IMQUIC_MOQ_SUBGROUP_HEADER_RANGE1_MIN = 0x10 , IMQUIC_MOQ_SUBGROUP_HEADER_RANGE1_MAX = 0x1D , IMQUIC_MOQ_SUBGROUP_HEADER_RANGE2_MIN = 0x30 ,   IMQUIC_MOQ_SUBGROUP_HEADER_RANGE2_MAX = 0x3D , IMQUIC_MOQ_SUBGROUP_HEADER_RANGE3_MIN = 0x50 , IMQUIC_MOQ_SUBGROUP_HEADER_RANGE3_MAX = 0x5D , IMQUIC_MOQ_SUBGROUP_HEADER_RANGE4_MIN = 0x70 ,   IMQUIC_MOQ_SUBGROUP_HEADER_RANGE4_MAX = 0x7D , IMQUIC_MOQ_FETCH_HEADER = 0x5 , IMQUIC_MOQ_PADDING_STREAM = 0x132B3E28 }
	MoQ STREAM data messages. More...
enum	imquic_moq_fetch_subgroup_type { IMQUIC_MOQ_FETCH_SUBGROUP_ZERO = 0x00 , IMQUIC_MOQ_FETCH_SUBGROUP_PREVIOUS = 0x01 , IMQUIC_MOQ_FETCH_SUBGROUP_PLUS_ONE = 0x02 , IMQUIC_MOQ_FETCH_SUBGROUP_ID = 0x03 }
	MoQ FETCH subgroup flags. More...
enum	imquic_moq_setup_option_type {   IMQUIC_MOQ_SETUP_OPTION_PATH = 0x01 , IMQUIC_MOQ_SETUP_OPTION_MAX_REQUEST_ID = 0x02 , IMQUIC_MOQ_SETUP_OPTION_AUTHORIZATION_TOKEN = 0x03 , IMQUIC_MOQ_SETUP_OPTION_MAX_AUTH_TOKEN_CACHE_SIZE = 0x04 ,   IMQUIC_MOQ_SETUP_OPTION_AUTHORITY = 0x05 , IMQUIC_MOQ_SETUP_OPTION_MOQT_IMPLEMENTATION = 0x07 }
	MoQ setup option type. More...
enum	imquic_moq_request_parameter_type {   IMQUIC_MOQ_REQUEST_PARAM_OBJECT_DELIVERY_TIMEOUT = 0x02 , IMQUIC_MOQ_REQUEST_PARAM_DELIVERY_TIMEOUT = 0x02 , IMQUIC_MOQ_REQUEST_PARAM_AUTHORIZATION_TOKEN = 0x03 , IMQUIC_MOQ_REQUEST_PARAM_RENDEZVOUS_TIMEOUT = 0x04 ,   IMQUIC_MOQ_REQUEST_PARAM_SUBGROUP_DELIVERY_TIMEOUT = 0x06 , IMQUIC_MOQ_REQUEST_PARAM_EXPIRES = 0x8 , IMQUIC_MOQ_REQUEST_PARAM_LARGEST_OBJECT = 0x9 , IMQUIC_MOQ_REQUEST_PARAM_FILL_TIMEOUT = 0x0A ,   IMQUIC_MOQ_REQUEST_PARAM_FORWARD = 0x10 , IMQUIC_MOQ_REQUEST_PARAM_SUBSCRIBER_PRIORITY = 0x20 , IMQUIC_MOQ_REQUEST_PARAM_SUBSCRIPTION_FILTER = 0x21 , IMQUIC_MOQ_REQUEST_PARAM_GROUP_ORDER = 0x22 ,   IMQUIC_MOQ_REQUEST_PARAM_NEW_GROUP_REQUEST = 0x32 , IMQUIC_MOQ_REQUEST_PARAM_TRACK_NAMESPACE_PREFIX = 0x34 }
	MoQ request parameter types. More...
enum	imquic_moq_fetch_type { IMQUIC_MOQ_FETCH_STANDALONE = 0x01 , IMQUIC_MOQ_FETCH_JOINING_RELATIVE = 0x02 , IMQUIC_MOQ_FETCH_JOINING_ABSOLUTE = 0x03 }
	MoQ FETCH types. More...
enum	imquic_media_stream_request_state {   IMQUIC_MOQ_REQUEST_STATE_NEW = 0 , IMQUIC_MOQ_REQUEST_STATE_SENT , IMQUIC_MOQ_REQUEST_STATE_OK , IMQUIC_MOQ_REQUEST_STATE_ERROR ,   IMQUIC_MOQ_REQUEST_STATE_UPDATE_SENT , IMQUIC_MOQ_REQUEST_STATE_DONE }
	MoQ stream request state. More...

Functions
void	imquic_moq_init (void)
	Initialize the native MoQ stack at startup.
void	imquic_moq_deinit (void)
	Uninitialize the native MoQ stack.
const char *	imquic_moq_message_type_str (imquic_moq_message_type type, imquic_moq_version version)
	Helper function to serialize to string the name of a imquic_moq_message_type value.
gboolean	imquic_moq_is_datagram_message_type_valid (imquic_moq_version version, uint8_t type)
	Helper function to check if a type used for OBJECT_DATAGRAM or OBJECT_DATAGRAM_STATUS is valid.
uint8_t	imquic_moq_datagram_message_type_return (imquic_moq_version version, gboolean payload, gboolean prop, gboolean eog, gboolean oid, gboolean priority)
	Helper function to return the imquic_moq_datagram_message_type value for OBJECT_DATAGRAM or OBJECT_DATAGRAM_STATUS out of the individual properties.
void	imquic_moq_datagram_message_type_parse (imquic_moq_version version, uint8_t type, gboolean *payload, gboolean *prop, gboolean *eog, gboolean *oid, gboolean *priority, gboolean *violation)
	Helper function to parse a imquic_moq_datagram_message_type value for OBJECT_DATAGRAM or OBJECT_DATAGRAM_STATUS to the individual properties.
const char *	imquic_moq_datagram_message_type_str (imquic_moq_datagram_message_type type, imquic_moq_version version)
	Helper function to serialize to string the name of a imquic_moq_datagram_message_type value.
gboolean	imquic_moq_is_data_message_type_valid (imquic_moq_version version, imquic_moq_data_message_type type)
	Helper function to check if a type used for SUBRGOUP_HEADER is valid.
uint8_t	imquic_moq_data_message_type_from_subgroup_header (imquic_moq_version version, gboolean subgroup, gboolean sgid0, gboolean prop, gboolean eog, gboolean priority, gboolean first_object)
	Helper function to return the type to use for SUBRGOUP_HEADER out of the individual properties.
void	imquic_moq_data_message_type_to_subgroup_header (imquic_moq_version version, uint8_t type, gboolean *subgroup, gboolean *sgid0, gboolean *prop, gboolean *eog, gboolean *priority, gboolean *first_object, gboolean *violation)
	Helper function to parse a type value for SUBRGOUP_HEADER to the individual properties.
const char *	imquic_moq_data_message_type_str (imquic_moq_data_message_type type, imquic_moq_version version)
	Helper function to serialize to string the name of a imquic_moq_data_message_type value.
imquic_moq_delivery	imquic_moq_data_message_type_to_delivery (imquic_moq_data_message_type type, imquic_moq_version version)
	Helper function to return the imquic_moq_delivery mode associated to a imquic_moq_data_message_type type.
gboolean	imquic_moq_is_fetch_serialization_flags_valid (imquic_moq_version version, uint64_t flags)
	Helper function to check if serialization flags used for FETCH are valid.
uint64_t	imquic_moq_generate_fetch_serialization_flags (imquic_moq_version version, imquic_moq_fetch_subgroup_type subgroup, gboolean oid, gboolean group, gboolean priority, gboolean prop, gboolean datagram, gboolean end_ne_range, gboolean end_uk_range)
	Helper function to return the serialization flags to use for FETCH out of the individual properties.
void	imquic_moq_parse_fetch_serialization_flags (imquic_moq_version version, uint64_t flags, imquic_moq_fetch_subgroup_type *subgroup, gboolean *oid, gboolean *group, gboolean *priority, gboolean *prop, gboolean *datagram, gboolean *end_ne_range, gboolean *end_uk_range, gboolean *violation)
	Helper function to parse serialozation flags for FETCH to the individual properties.
const char *	imquic_moq_setup_option_type_str (imquic_moq_setup_option_type type)
	Helper function to serialize to string the name of a imquic_moq_setup_option_type value.
const char *	imquic_moq_request_parameter_type_str (imquic_moq_request_parameter_type type, imquic_moq_version version)
	Helper function to serialize to string the name of a imquic_moq_request_parameter_type value.
GList *	imquic_moq_parse_properties (imquic_moq_version version, uint8_t *properties, size_t plen)
	Helper mode to parse a properties buffer to a GList of imquic_moq_property.
size_t	imquic_moq_build_properties (imquic_moq_version version, GList *properties, uint8_t *bytes, size_t blen)
	Helper mode to craft a properties buffer out of a GList of imquic_moq_property.
const char *	imquic_moq_fetch_type_str (imquic_moq_fetch_type type)
	Helper function to serialize to string the name of a imquic_moq_fetch_type value.
const char *	imquic_media_stream_request_state_str (imquic_media_stream_request_state state)
	Helper function to serialize to string the name of a imquic_media_stream_request_state value.
imquic_moq_stream *	imquic_moq_stream_create (void)
	Create a new MoQ stream.
void	imquic_moq_stream_destroy (imquic_moq_stream *moq_stream)
	Destroy an existing MoQ stream.
imquic_moq_subscription *	imquic_moq_subscription_create (uint64_t request_id, uint64_t track_alias)
	Helper to create a new subscription instance.
void	imquic_moq_subscription_destroy (imquic_moq_subscription *moq_sub)
	Destroy an existing MoQ subscription.
Parsing MoQ messages
int	imquic_moq_parse_message (imquic_moq_context *moq, uint64_t stream_id, uint8_t *bytes, size_t blen, gboolean complete, gboolean datagram)
	Parse an incoming MoQ message.
size_t	imquic_moq_parse_client_setup (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a CLIENT_SETUP message.
size_t	imquic_moq_parse_server_setup (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a SERVER_SETUP message.
size_t	imquic_moq_parse_setup (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a SETUP message.
size_t	imquic_moq_parse_max_request_id (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a MAX_REQUEST_ID message.
size_t	imquic_moq_parse_requests_blocked (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a REQUESTS_BLOCKED message.
size_t	imquic_moq_parse_request_ok (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a REQUEST_OK message.
size_t	imquic_moq_parse_request_error (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a REQUEST_ERROR message.
size_t	imquic_moq_parse_publish_namespace (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a PUBLISH_NAMESPACE message.
size_t	imquic_moq_parse_publish_namespace_done (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a PUBLISH_NAMESPACE_DONE message.
size_t	imquic_moq_parse_publish_namespace_cancel (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a PUBLISH_NAMESPACE_CANCEL message.
size_t	imquic_moq_parse_publish (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a PUBLISH message.
size_t	imquic_moq_parse_publish_ok (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a PUBLISH_OK message.
size_t	imquic_moq_parse_subscribe (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a SUBSCRIBE message.
size_t	imquic_moq_parse_request_update (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a REQUEST_UPDATE message.
size_t	imquic_moq_parse_subscribe_ok (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a SUBSCRIBE_OK message.
size_t	imquic_moq_parse_unsubscribe (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse an UNSUBSCRIBE message.
size_t	imquic_moq_parse_publish_done (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a PUBLISH_DONE message.
size_t	imquic_moq_parse_subscribe_namespace (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a SUBSCRIBE_NAMESPACE message.
size_t	imquic_moq_parse_subscribe_tracks (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a SUBSCRIBE_TRACKS message.
size_t	imquic_moq_parse_namespace (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a NAMESPACE message.
size_t	imquic_moq_parse_namespace_done (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a NAMESPACE_DONE message.
size_t	imquic_moq_parse_publish_blocked (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a PUBLISH_BLOCKED message.
size_t	imquic_moq_parse_fetch (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a FETCH message.
size_t	imquic_moq_parse_fetch_cancel (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a FETCH_CANCEL message.
size_t	imquic_moq_parse_fetch_ok (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a FETCH_OK message.
size_t	imquic_moq_parse_track_status (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a TRACK_STATUS message.
size_t	imquic_moq_parse_object_datagram (imquic_moq_context *moq, uint8_t *bytes, size_t blen, imquic_moq_datagram_message_type dtype, uint8_t *error)
	Helper to parse an OBJECT_DATAGRAM message.
size_t	imquic_moq_parse_object_datagram_status (imquic_moq_context *moq, uint8_t *bytes, size_t blen, imquic_moq_datagram_message_type dtype, uint8_t *error)
	Helper to parse an OBJECT_DATAGRAM_STATUS message.
size_t	imquic_moq_parse_subgroup_header (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, imquic_moq_data_message_type dtype, uint8_t *error)
	Helper to parse a SUBGROUP_HEADER message.
int	imquic_moq_parse_subgroup_header_object (imquic_moq_context *moq, imquic_moq_stream *moq_stream, gboolean complete, uint8_t *error)
	Helper to parse a SUBGROUP_HEADER object.
size_t	imquic_moq_parse_fetch_header (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a FETCH_HEADER message.
int	imquic_moq_parse_fetch_header_object (imquic_moq_context *moq, imquic_moq_stream *moq_stream, gboolean complete, uint8_t *error)
	Helper to parse a FETCH_HEADER object.
size_t	imquic_moq_parse_padding_datagram (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a PADDING_DATAGRAM message.
int	imquic_moq_parse_padding_stream (imquic_moq_context *moq, imquic_moq_stream *moq_stream, gboolean complete, uint8_t *error)
	Helper to parse a PADDING_STREAM message.
size_t	imquic_moq_parse_goaway (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint8_t *error)
	Helper to parse a GOAWAY message.
Building MoQ messages
size_t	imquic_moq_add_client_setup (imquic_moq_context *moq, uint8_t *bytes, size_t blen, imquic_moq_setup_options *options)
	Helper method to add a CLIENT_SETUP message to a buffer.
size_t	imquic_moq_add_server_setup (imquic_moq_context *moq, uint8_t *bytes, size_t blen, imquic_moq_setup_options *options)
	Helper method to add a SERVER_SETUP message to a buffer.
size_t	imquic_moq_add_setup (imquic_moq_context *moq, uint8_t *bytes, size_t blen, imquic_moq_setup_options *options)
	Helper method to add a SETUP message to a buffer.
size_t	imquic_moq_add_max_request_id (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint64_t max_request_id)
	Helper method to add a MAX_REQUEST_ID message to a buffer.
size_t	imquic_moq_add_requests_blocked (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint64_t max_request_id)
	Helper method to add a REQUESTS_BLOCKED message to a buffer.
size_t	imquic_moq_add_request_ok (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint64_t request_id, imquic_moq_request_parameters *parameters, GList *track_properties)
	Helper method to add a REQUEST_OK message to a buffer.
size_t	imquic_moq_add_request_error (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint64_t request_id, uint64_t error, const char *reason, uint64_t retry_interval, imquic_moq_redirect *redirect)
	Helper method to add a REQUEST_ERROR message to a buffer.
size_t	imquic_moq_add_publish_namespace (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint64_t request_id, imquic_moq_namespace *track_namespace, imquic_moq_request_parameters *parameters)
	Helper method to add a PUBLISH_NAMESPACE message to a buffer.
size_t	imquic_moq_add_publish_namespace_done (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint64_t request_id)
	Helper method to add a PUBLISH_NAMESPACE_DONE message to a buffer.
size_t	imquic_moq_add_publish_namespace_cancel (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint64_t request_id, imquic_moq_request_error_code error, const char *reason)
	Helper method to add a PUBLISH_NAMESPACE_CANCEL message to a buffer.
size_t	imquic_moq_add_publish (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint64_t request_id, imquic_moq_namespace *track_namespace, imquic_moq_track *track_name, uint64_t track_alias, imquic_moq_request_parameters *parameters, GList *track_properties)
	Helper to add a PUBLISH message to a buffer.
size_t	imquic_moq_add_publish_ok (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint64_t request_id, imquic_moq_request_parameters *parameters)
	Helper method to add a PUBLISH_OK message to a buffer.
size_t	imquic_moq_add_subscribe (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint64_t request_id, imquic_moq_namespace *track_namespace, imquic_moq_track *track_name, imquic_moq_request_parameters *parameters)
	Helper to add a SUBSCRIBE message to a buffer.
size_t	imquic_moq_add_request_update (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint64_t request_id, uint64_t sub_request_id, imquic_moq_request_parameters *parameters)
	Helper method to add a REQUEST_UPDATE message to a buffer.
size_t	imquic_moq_add_subscribe_ok (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint64_t request_id, uint64_t track_alias, imquic_moq_request_parameters *parameters, GList *track_properties)
	Helper method to add a SUBSCRIBE_OK message to a buffer.
size_t	imquic_moq_add_unsubscribe (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint64_t request_id)
	Helper method to add an UNSUBSCRIBE message to a buffer.
size_t	imquic_moq_add_publish_done (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint64_t request_id, imquic_moq_pub_done_code status, uint64_t streams_count, const char *reason)
	Helper method to add a PUBLISH_DONE message to a buffer.
size_t	imquic_moq_add_subscribe_namespace (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint64_t request_id, imquic_moq_namespace *track_namespace, imquic_moq_subscribe_namespace_options subscribe_options, imquic_moq_request_parameters *parameters)
	Helper to add a SUBSCRIBE_NAMESPACE message to a buffer.
size_t	imquic_moq_add_subscribe_tracks (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint64_t request_id, imquic_moq_namespace *track_namespace, imquic_moq_request_parameters *parameters)
	Helper to add a SUBSCRIBE_TRACKS message to a buffer.
size_t	imquic_moq_add_namespace (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, imquic_moq_namespace *track_namespace_suffix)
	Helper method to add a NAMESPACE_DONE message to a buffer.
size_t	imquic_moq_add_namespace_done (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, imquic_moq_namespace *track_namespace_suffix)
	Helper method to add a NAMESPACE_DONE message to a buffer.
size_t	imquic_moq_add_publish_blocked (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, imquic_moq_namespace *track_namespace_suffix, imquic_moq_track *track)
	Helper method to add a PUBLISH_BLOCKED message to a buffer.
size_t	imquic_moq_add_fetch (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, imquic_moq_fetch_type type, uint64_t request_id, uint64_t joining_request_id, uint64_t preceding_group_offset, imquic_moq_namespace *track_namespace, imquic_moq_track *track_name, imquic_moq_location_range *range, imquic_moq_request_parameters *parameters)
	Helper to add a FETCH message to a buffer.
size_t	imquic_moq_add_fetch_cancel (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint64_t request_id)
	Helper method to add an FETCH_CANCEL message to a buffer.
size_t	imquic_moq_add_fetch_ok (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint64_t request_id, uint8_t end_of_track, imquic_moq_location *end_location, imquic_moq_request_parameters *parameters, GList *track_properties)
	Helper method to add a FETCH_OK message to a buffer.
size_t	imquic_moq_add_track_status (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint64_t request_id, imquic_moq_namespace *track_namespace, imquic_moq_track *track_name, imquic_moq_request_parameters *parameters)
	Helper to add a TRACK_STATUS message to a buffer.
size_t	imquic_moq_add_goaway (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint64_t request_id, const char *new_session_uri, uint64_t timeout)
	Helper method to add a GOAWAY message to a buffer.
size_t	imquic_moq_add_object_datagram (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint64_t request_id, uint64_t track_alias, uint64_t group_id, uint64_t object_id, uint64_t object_status, uint8_t priority, uint8_t *payload, size_t plen, uint8_t *properties, size_t prlen)
	Helper to add an OBJECT_DATAGRAM message to a buffer.
size_t	imquic_moq_add_object_datagram_status (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint64_t track_alias, uint64_t group_id, uint64_t object_id, uint8_t priority, uint64_t object_status, uint8_t *properties, size_t prlen)
	Helper to add an OBJECT_DATAGRAM_STATUS message to a buffer.
size_t	imquic_moq_add_subgroup_header (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint64_t request_id, uint64_t track_alias, uint64_t group_id, uint64_t subgroup_id, uint8_t priority)
	Helper to add a SUBGROUP_HEADER message to a buffer.
size_t	imquic_moq_add_subgroup_header_object (imquic_moq_context *moq, imquic_moq_stream *moq_stream, uint8_t *bytes, size_t blen, uint64_t object_id, uint64_t object_status, uint8_t *payload, size_t plen, uint8_t *properties, size_t prlen)
	Helper to add an object to a buffer, formatted as expected for SUBGROUP_HEADER objects (so not all IDs)
size_t	imquic_moq_add_fetch_header (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint64_t request_id)
	Helper to add a FETCH_HEADER message to a buffer.
size_t	imquic_moq_add_fetch_header_object (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint64_t flags, uint64_t group_id, uint64_t subgroup_id, uint64_t object_id, uint8_t priority, uint64_t object_status, uint8_t *payload, size_t plen, uint8_t *properties, size_t prlen)
	Helper to add an object to a buffer, formatted as expected for FETCH_HEADER objects (so not all IDs)
size_t	imquic_moq_add_padding (imquic_moq_context *moq, uint8_t *bytes, size_t blen, size_t padding, gboolean datagram)
	Helper to add padding data to a buffer, formatted as expected for PADDING_STREAM or PADDING_DATAGRAM.
size_t	imquic_moq_add_properties (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint8_t *properties, size_t prlen, gboolean prefix)
	Helper method to add properties to a buffer.
Parsing and building MoQ setup options (TLV)
size_t	imquic_moq_setup_option_add_int (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint64_t opt, uint64_t prev, uint64_t number)
	Helper to add a MoQ setup option with a numeric value to a buffer.
size_t	imquic_moq_setup_option_add_data (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint64_t opt, uint64_t prev, uint8_t *buf, size_t buflen)
	Helper to add a MoQ setup option with generic data to a buffer.
size_t	imquic_moq_parse_setup_option (imquic_moq_context *moq, uint8_t *bytes, size_t blen, imquic_moq_setup_options *params, uint64_t *param_type, uint8_t *error)
	Helper method to parse a MoQ setup parameter.
size_t	imquic_moq_setup_options_serialize (imquic_moq_context *moq, imquic_moq_setup_options *options, uint8_t *bytes, size_t blen, uint8_t *params_num)
	Helper to serialize a imquic_moq_setup_options set to a buffer.
Parsing and building MoQ parameters (TLV or not, depending on version)
size_t	imquic_moq_parameter_add_varint (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint64_t param, uint64_t prev, uint64_t number)
	Helper to add a MoQ parameter with a numeric value to a buffer as a varint.
size_t	imquic_moq_parameter_add_uint8 (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint64_t param, uint64_t prev, uint8_t number)
	Helper to add a MoQ parameter with a numeric value to a buffer as a byte.
size_t	imquic_moq_parameter_add_location (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint64_t param, uint64_t prev, imquic_moq_location *location)
	Helper to add a MoQ parameter with a location to a buffer.
size_t	imquic_moq_parameter_add_data (imquic_moq_context *moq, uint8_t *bytes, size_t blen, uint64_t param, uint64_t prev, uint8_t *buf, size_t buflen)
	Helper to add a MoQ parameter with generic data to a buffer.
size_t	imquic_moq_parse_request_parameter (imquic_moq_context *moq, uint8_t *bytes, size_t blen, imquic_moq_request_parameters *params, uint64_t *param_type, uint8_t *error)
	Helper method to parse a MoQ subscribe parameter.
size_t	imquic_moq_request_parameters_serialize (imquic_moq_context *moq, imquic_moq_message_type request, imquic_moq_request_parameters *parameters, uint8_t *bytes, size_t blen, uint8_t *params_num)
	Helper to serialize a imquic_moq_request_parameters set to a buffer.
Internal callbacks for MoQ endpoints
void	imquic_moq_new_connection (imquic_connection *conn, void *user_data)
	Callback the core invokes when a new QUIC connection using MoQ is available.
void	imquic_moq_stream_incoming (imquic_connection *conn, uint64_t stream_id, uint8_t *bytes, uint64_t length, gboolean complete)
	Callback the core invokes when there's new incoming data on a STREAM.
void	imquic_moq_datagram_incoming (imquic_connection *conn, uint8_t *bytes, uint64_t length)
	Callback the core invokes when there's new incoming data on a DATAGRAM.
void	imquic_moq_reset_stream_incoming (imquic_connection *conn, uint64_t stream_id, uint64_t error_code)
	Callback the core invokes when there's an incoming RESET_STREAM.
void	imquic_moq_stop_sending_incoming (imquic_connection *conn, uint64_t stream_id, uint64_t error_code)
	Callback the core invokes when there's an incoming STOP_SENDING.
void	imquic_moq_connection_gone (imquic_connection *conn, uint64_t error_code, const char *reason)
	Callback the core invokes when an existing MoQ connection is not available anymore.
QLOG events tracing for MoQT
json_t *	imquic_qlog_moq_message_prepare (const char *type)
	Helper to create a new QLOG MoQT message.
void	imquic_qlog_moq_message_add_namespace (json_t *message, imquic_moq_namespace *track_namespace, const char *name)
	Helper to add a stringified namespace tuple array to a message.
void	imquic_qlog_moq_message_add_track (json_t *message, imquic_moq_track *track_name)
	Helper to add a stringified track name to a message.
void	imquic_qlog_moq_message_add_setup_options (json_t *message, imquic_moq_setup_options *options, const char *name)
	Helper to add a stringified array of setup parameters to a message.
void	imquic_qlog_moq_message_add_request_parameters (json_t *message, imquic_moq_version version, imquic_moq_request_parameters *parameters, const char *name)
	Helper to add a stringified array of subscribe parameters to a message.
void	imquic_qlog_moq_message_add_properties (json_t *message, GList *properties, const char *name)
	Helper to add a stringified array of propertie headers to a message.
void	imquic_moq_qlog_control_message_created (imquic_qlog *qlog, uint64_t stream_id, uint8_t *bytes, size_t length, json_t *message)
	Add a control_message_created event.
void	imquic_moq_qlog_control_message_parsed (imquic_qlog *qlog, uint64_t stream_id, uint8_t *bytes, size_t length, json_t *message)
	Add a control_message_parsed event.
void	imquic_moq_qlog_stream_type_set (imquic_qlog *qlog, gboolean local, uint64_t stream_id, const char *type)
	Add a stream_type_set event.
void	imquic_moq_qlog_object_datagram_created (imquic_qlog *qlog, imquic_moq_object *object)
	Add a object_datagram_created event.
void	imquic_moq_qlog_object_datagram_parsed (imquic_qlog *qlog, imquic_moq_object *object)
	Add a object_datagram_parsed event.
void	imquic_moq_qlog_object_datagram_status_created (imquic_qlog *qlog, imquic_moq_object *object)
	Add a object_datagram_status_created event.
void	imquic_moq_qlog_object_datagram_status_parsed (imquic_qlog *qlog, imquic_moq_object *object)
	Add a object_datagram_status_parsed event.
void	imquic_moq_qlog_subgroup_header_created (imquic_qlog *qlog, imquic_moq_stream *stream, uint8_t *bytes, size_t length)
	Add a subgroup_header_created event.
void	imquic_moq_qlog_subgroup_header_parsed (imquic_qlog *qlog, imquic_moq_stream *stream, uint8_t *bytes, size_t length)
	Add a subgroup_header_parsed event.
void	imquic_moq_qlog_subgroup_object_created (imquic_qlog *qlog, uint64_t stream_id, imquic_moq_object *object)
	Add a subgroup_object_created event.
void	imquic_moq_qlog_subgroup_object_parsed (imquic_qlog *qlog, uint64_t stream_id, imquic_moq_object *object)
	Add a subgroup_object_parsed event.
void	imquic_moq_qlog_fetch_header_created (imquic_qlog *qlog, imquic_moq_stream *stream, uint8_t *bytes, size_t length)
	Add a fetch_header_created event.
void	imquic_moq_qlog_fetch_header_parsed (imquic_qlog *qlog, imquic_moq_stream *stream, uint8_t *bytes, size_t length)
	Add a fetch_header_parsed event.
void	imquic_moq_qlog_fetch_object_created (imquic_qlog *qlog, uint64_t stream_id, imquic_moq_object *object)
	Add a fetch_object_created event.
void	imquic_moq_qlog_fetch_object_parsed (imquic_qlog *qlog, uint64_t stream_id, imquic_moq_object *object)
	Add a fetch_object_parsed event.

Detailed Description

Media Over QUIC (MoQ) stack (headers)

Author

Lorenzo Miniero loren.nosp@m.zo@m.nosp@m.eetec.nosp@m.ho.c.nosp@m.om

Copyright

MIT License

Implementation of the Media Over QUIC (MoQ) stack as part of the library itself. At the time of writing, this implements (most of) versions from -16 to to -17 of the protocol.

Note

This is the internal implementation of MoQ in the library. You're still free to only use imquic as the underlying QUIC/WebTransport library, and take care of the MoQ implementation on your own instead: in order to do that, use the generic imquic client/server creation utilities, rather than the MoQ specific ones.

Macro Definition Documentation

IMQUIC_MOQ

#define IMQUIC_MOQ   7171953

Typedef Documentation

imquic_media_stream_request_state

typedef enum imquic_media_stream_request_state imquic_media_stream_request_state

MoQ stream request state.

Note

Only needed for tracking the state of bidirectional requests, not media

imquic_moq_callbacks

typedef struct imquic_moq_callbacks imquic_moq_callbacks

MoQ public callbacks.

imquic_moq_context

typedef struct imquic_moq_context imquic_moq_context

MoQ context.

imquic_moq_data_message_type

typedef enum imquic_moq_data_message_type imquic_moq_data_message_type

MoQ STREAM data messages.

imquic_moq_datagram_message_type

typedef enum imquic_moq_datagram_message_type imquic_moq_datagram_message_type

MoQ datagram messages.

imquic_moq_fetch_subgroup_type

typedef enum imquic_moq_fetch_subgroup_type imquic_moq_fetch_subgroup_type

MoQ FETCH subgroup flags.

imquic_moq_fetch_type

typedef enum imquic_moq_fetch_type imquic_moq_fetch_type

MoQ FETCH types.

imquic_moq_message_type

typedef enum imquic_moq_message_type imquic_moq_message_type

MoQ messages.

imquic_moq_request_parameter_type

typedef enum imquic_moq_request_parameter_type imquic_moq_request_parameter_type

MoQ request parameter types.

imquic_moq_setup_option_type

typedef enum imquic_moq_setup_option_type imquic_moq_setup_option_type

MoQ setup option type.

imquic_moq_setup_options

typedef struct imquic_moq_setup_options imquic_moq_setup_options

MoQ setup parameters.

imquic_moq_stream

typedef struct imquic_moq_stream imquic_moq_stream

MoQ stream.

Note

This is usually used for objects (e.g., via SUBGROUP_HEADER or FETCH), but starting in v16, requests can use streams too

imquic_moq_subscription

typedef struct imquic_moq_subscription imquic_moq_subscription

MoQ subscription, whether this is a publisher or a subscriber.

Enumeration Type Documentation

imquic_media_stream_request_state

enum imquic_media_stream_request_state

MoQ stream request state.

Note

Only needed for tracking the state of bidirectional requests, not media

Enumerator
IMQUIC_MOQ_REQUEST_STATE_NEW
IMQUIC_MOQ_REQUEST_STATE_SENT
IMQUIC_MOQ_REQUEST_STATE_OK
IMQUIC_MOQ_REQUEST_STATE_ERROR
IMQUIC_MOQ_REQUEST_STATE_UPDATE_SENT
IMQUIC_MOQ_REQUEST_STATE_DONE

imquic_moq_data_message_type

enum imquic_moq_data_message_type

MoQ STREAM data messages.

Enumerator
IMQUIC_MOQ_SUBGROUP_HEADER
IMQUIC_MOQ_SUBGROUP_HEADER_RANGE1_MIN
IMQUIC_MOQ_SUBGROUP_HEADER_RANGE1_MAX
IMQUIC_MOQ_SUBGROUP_HEADER_RANGE2_MIN
IMQUIC_MOQ_SUBGROUP_HEADER_RANGE2_MAX
IMQUIC_MOQ_SUBGROUP_HEADER_RANGE3_MIN
IMQUIC_MOQ_SUBGROUP_HEADER_RANGE3_MAX
IMQUIC_MOQ_SUBGROUP_HEADER_RANGE4_MIN
IMQUIC_MOQ_SUBGROUP_HEADER_RANGE4_MAX
IMQUIC_MOQ_FETCH_HEADER
IMQUIC_MOQ_PADDING_STREAM

imquic_moq_datagram_message_type

enum imquic_moq_datagram_message_type

MoQ datagram messages.

Enumerator
IMQUIC_MOQ_OBJECT_DATAGRAM
IMQUIC_MOQ_OBJECT_DATAGRAM_STATUS
IMQUIC_MOQ_OBJECT_DATAGRAM_RANGE_MIN
IMQUIC_MOQ_OBJECT_DATAGRAM_RANGE_MAX
IMQUIC_MOQ_PADDING_DATAGRAM

imquic_moq_fetch_subgroup_type

enum imquic_moq_fetch_subgroup_type

MoQ FETCH subgroup flags.

Enumerator
IMQUIC_MOQ_FETCH_SUBGROUP_ZERO
IMQUIC_MOQ_FETCH_SUBGROUP_PREVIOUS
IMQUIC_MOQ_FETCH_SUBGROUP_PLUS_ONE
IMQUIC_MOQ_FETCH_SUBGROUP_ID

imquic_moq_fetch_type

enum imquic_moq_fetch_type

MoQ FETCH types.

Enumerator
IMQUIC_MOQ_FETCH_STANDALONE
IMQUIC_MOQ_FETCH_JOINING_RELATIVE
IMQUIC_MOQ_FETCH_JOINING_ABSOLUTE

imquic_moq_message_type

enum imquic_moq_message_type

MoQ messages.

Enumerator
IMQUIC_MOQ_REQUEST_OK
IMQUIC_MOQ_REQUEST_ERROR
IMQUIC_MOQ_REQUEST_UPDATE
IMQUIC_MOQ_SUBSCRIBE
IMQUIC_MOQ_SUBSCRIBE_OK
IMQUIC_MOQ_PUBLISH_NAMESPACE
IMQUIC_MOQ_PUBLISH_NAMESPACE_DONE
IMQUIC_MOQ_UNSUBSCRIBE
IMQUIC_MOQ_PUBLISH_DONE
IMQUIC_MOQ_PUBLISH_NAMESPACE_CANCEL
IMQUIC_MOQ_TRACK_STATUS
IMQUIC_MOQ_GOAWAY
IMQUIC_MOQ_SUBSCRIBE_NAMESPACE
IMQUIC_MOQ_SUBSCRIBE_NAMESPACE_v17
IMQUIC_MOQ_SUBSCRIBE_TRACKS
IMQUIC_MOQ_NAMESPACE
IMQUIC_MOQ_NAMESPACE_DONE
IMQUIC_MOQ_PUBLISH_BLOCKED
IMQUIC_MOQ_MAX_REQUEST_ID
IMQUIC_MOQ_REQUESTS_BLOCKED
IMQUIC_MOQ_FETCH
IMQUIC_MOQ_FETCH_CANCEL
IMQUIC_MOQ_FETCH_OK
IMQUIC_MOQ_SETUP
IMQUIC_MOQ_CLIENT_SETUP
IMQUIC_MOQ_SERVER_SETUP
IMQUIC_MOQ_PUBLISH
IMQUIC_MOQ_PUBLISH_OK

imquic_moq_request_parameter_type

enum imquic_moq_request_parameter_type

MoQ request parameter types.

Enumerator
IMQUIC_MOQ_REQUEST_PARAM_OBJECT_DELIVERY_TIMEOUT
IMQUIC_MOQ_REQUEST_PARAM_DELIVERY_TIMEOUT
IMQUIC_MOQ_REQUEST_PARAM_AUTHORIZATION_TOKEN
IMQUIC_MOQ_REQUEST_PARAM_RENDEZVOUS_TIMEOUT
IMQUIC_MOQ_REQUEST_PARAM_SUBGROUP_DELIVERY_TIMEOUT
IMQUIC_MOQ_REQUEST_PARAM_EXPIRES
IMQUIC_MOQ_REQUEST_PARAM_LARGEST_OBJECT
IMQUIC_MOQ_REQUEST_PARAM_FILL_TIMEOUT
IMQUIC_MOQ_REQUEST_PARAM_FORWARD
IMQUIC_MOQ_REQUEST_PARAM_SUBSCRIBER_PRIORITY
IMQUIC_MOQ_REQUEST_PARAM_SUBSCRIPTION_FILTER
IMQUIC_MOQ_REQUEST_PARAM_GROUP_ORDER
IMQUIC_MOQ_REQUEST_PARAM_NEW_GROUP_REQUEST
IMQUIC_MOQ_REQUEST_PARAM_TRACK_NAMESPACE_PREFIX

imquic_moq_setup_option_type

enum imquic_moq_setup_option_type

MoQ setup option type.

Enumerator
IMQUIC_MOQ_SETUP_OPTION_PATH
IMQUIC_MOQ_SETUP_OPTION_MAX_REQUEST_ID
IMQUIC_MOQ_SETUP_OPTION_AUTHORIZATION_TOKEN
IMQUIC_MOQ_SETUP_OPTION_MAX_AUTH_TOKEN_CACHE_SIZE
IMQUIC_MOQ_SETUP_OPTION_AUTHORITY
IMQUIC_MOQ_SETUP_OPTION_MOQT_IMPLEMENTATION

Function Documentation

imquic_media_stream_request_state_str()

const char * imquic_media_stream_request_state_str

(

imquic_media_stream_request_state

state

)

Helper function to serialize to string the name of a imquic_media_stream_request_state value.

Parameters

state

The imquic_media_stream_request_state value

Returns

The state name as a string, if valid, or NULL otherwise

imquic_moq_add_client_setup()

size_t imquic_moq_add_client_setup	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		imquic_moq_setup_options *	options )

Helper method to add a CLIENT_SETUP message to a buffer.

Note

This message was deprecated in v17: now both client and server use SETUP

Parameters

moq	The imquic_moq_context generating the message
bytes	The buffer to add the message to
blen	The size of the buffer
options	The setup options to send

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_fetch()

size_t imquic_moq_add_fetch	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		imquic_moq_fetch_type	type,
		uint64_t	request_id,
		uint64_t	joining_request_id,
		uint64_t	preceding_group_offset,
		imquic_moq_namespace *	track_namespace,
		imquic_moq_track *	track_name,
		imquic_moq_location_range *	range,
		imquic_moq_request_parameters *	parameters )

Helper to add a FETCH message to a buffer.

Parameters

moq	The imquic_moq_context generating the message
moq_stream	The imquic_moq_stream instance the message is for
bytes	The buffer to add the message to
blen	The size of the buffer
type	The FETCH type
request_id	The request ID to put in the message
joining_request_id	The joining request ID to put in the message, if any
preceding_group_offset	The preceding group offset for joining fetches, if any
track_namespace	The namespace to put in the message
track_name	The track name to put in the message
range	The Start/End Locations to put in the message
parameters	The parameters to add, if any

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_fetch_cancel()

size_t imquic_moq_add_fetch_cancel	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id )

Helper method to add an FETCH_CANCEL message to a buffer.

Note

This message was deprecated in v17

Parameters

moq	The imquic_moq_context generating the message
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_fetch_header()

size_t imquic_moq_add_fetch_header	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id )

Helper to add a FETCH_HEADER message to a buffer.

Note

This will create a new STREAM and send the header: after that, imquic_moq_add_fetch_header_object is used to send all objects that belong to this track.

Parameters

moq	The imquic_moq_context generating the message
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_fetch_header_object()

size_t imquic_moq_add_fetch_header_object	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	flags,
		uint64_t	group_id,
		uint64_t	subgroup_id,
		uint64_t	object_id,
		uint8_t	priority,
		uint64_t	object_status,
		uint8_t *	payload,
		size_t	plen,
		uint8_t *	properties,
		size_t	prlen )

Helper to add an object to a buffer, formatted as expected for FETCH_HEADER objects (so not all IDs)

Parameters

moq	The imquic_moq_context generating the object
bytes	The buffer to add the object to
blen	The size of the buffer
flags	The serialization flags
group_id	The group ID
subgroup_id	The subgroup ID
object_id	The object ID
priority	The publisher priority to put in the message
object_status	The object status (only added if the payload length is 0)
payload	The buffer containing the payload of the object
plen	The size of the payload buffer
properties	The buffer containing the properties, if any
prlen	The size of the properties buffer

Returns

The size of the generated object, if successful, or 0 otherwise

imquic_moq_add_fetch_ok()

size_t imquic_moq_add_fetch_ok	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id,
		uint8_t	end_of_track,
		imquic_moq_location *	end_location,
		imquic_moq_request_parameters *	parameters,
		GList *	track_properties )

Helper method to add a FETCH_OK message to a buffer.

Parameters

moq	The imquic_moq_context generating the message
moq_stream	The imquic_moq_stream instance the message is for
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message
end_of_track	Whether all objects have been published
end_location	End location to add to the message, if needed
parameters	The parameters to add, if any
track_properties	List of track properties to add, if any

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_goaway()

size_t imquic_moq_add_goaway	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id,
		const char *	new_session_uri,
		uint64_t	timeout )

Helper method to add a GOAWAY message to a buffer.

Parameters

moq	The imquic_moq_context generating the message
moq_stream	The imquic_moq_stream instance the message is for, if not on the control stream
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message
new_session_uri	New uri value to put in the message, if any
timeout	Timeout to put in the message (added in v17, ignored for older versions)

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_max_request_id()

size_t imquic_moq_add_max_request_id	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	max_request_id )

Helper method to add a MAX_REQUEST_ID message to a buffer.

Note

This message was deprecated in v17

Parameters

moq	The imquic_moq_context generating the message
bytes	The buffer to add the message to
blen	The size of the buffer
max_request_id	Maximum request ID to put in the message

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_namespace()

size_t imquic_moq_add_namespace	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		imquic_moq_namespace *	track_namespace_suffix )

Helper method to add a NAMESPACE_DONE message to a buffer.

Parameters

moq	The imquic_moq_context generating the message
moq_stream	The imquic_moq_stream instance the message is for
bytes	The buffer to add the message to
blen	The size of the buffer
track_namespace_suffix	Namespace suffix that is advertised

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_namespace_done()

size_t imquic_moq_add_namespace_done	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		imquic_moq_namespace *	track_namespace_suffix )

Helper method to add a NAMESPACE_DONE message to a buffer.

Parameters

moq	The imquic_moq_context generating the message
moq_stream	The imquic_moq_stream instance the message is for
bytes	The buffer to add the message to
blen	The size of the buffer
track_namespace_suffix	Namespace suffix that is done

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_object_datagram()

size_t imquic_moq_add_object_datagram	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id,
		uint64_t	track_alias,
		uint64_t	group_id,
		uint64_t	object_id,
		uint64_t	object_status,
		uint8_t	priority,
		uint8_t *	payload,
		size_t	plen,
		uint8_t *	properties,
		size_t	prlen )

Helper to add an OBJECT_DATAGRAM message to a buffer.

Note

This assumes the connection negotiated DATAGRAM support

Parameters

moq	The imquic_moq_context generating the message
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message
track_alias	The track alias to put in the message
group_id	The group ID to put in the message
object_id	The object ID to put in the message
object_status	The object status (only added if the payload length is 0)
priority	The publisher priority to put in the message
payload	The buffer containing the payload of the object
plen	The size of the payload buffer
properties	The buffer containing the properties, if any
prlen	The size of the properties buffer

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_object_datagram_status()

size_t imquic_moq_add_object_datagram_status	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	track_alias,
		uint64_t	group_id,
		uint64_t	object_id,
		uint8_t	priority,
		uint64_t	object_status,
		uint8_t *	properties,
		size_t	prlen )

Helper to add an OBJECT_DATAGRAM_STATUS message to a buffer.

Note

This assumes the connection negotiated DATAGRAM support

Parameters

moq	The imquic_moq_context generating the message
bytes	The buffer to add the message to
blen	The size of the buffer
track_alias	The track alias to put in the message
group_id	The group ID to put in the message
object_id	The object ID to put in the message
priority	The publisher priority to put in the message
object_status	The object status (only added if the payload length is 0)
properties	The buffer containing the properties, if any
prlen	The size of the properties buffer

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_padding()

size_t imquic_moq_add_padding	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		size_t	padding,
		gboolean	datagram )

Helper to add padding data to a buffer, formatted as expected for PADDING_STREAM or PADDING_DATAGRAM.

Parameters

moq	The imquic_moq_context generating the object
bytes	The buffer to add the data to
blen	The size of the buffer
padding	How much padding data to send
datagram	Whether this is meant to be sent on a DATAGRAM or STREAM

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_properties()

size_t imquic_moq_add_properties	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	properties,
		size_t	prlen,
		gboolean	prefix )

Helper method to add properties to a buffer.

Parameters

moq	The imquic_moq_context generating the message
bytes	The buffer to add the properties to
blen	The size of the buffer
properties	The buffer containing the properties, if any
prlen	The size of the properties buffer
prefix	If we need the length prefix (for object properties) or not (track properties)

Returns

The size of the generated properties block, if successful, or 0 otherwise

imquic_moq_add_publish()

size_t imquic_moq_add_publish	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id,
		imquic_moq_namespace *	track_namespace,
		imquic_moq_track *	track_name,
		uint64_t	track_alias,
		imquic_moq_request_parameters *	parameters,
		GList *	track_properties )

Helper to add a PUBLISH message to a buffer.

Parameters

moq	The imquic_moq_context generating the message
moq_stream	The imquic_moq_stream instance the message is for
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message
track_namespace	The namespace to put in the message
track_name	The track name to put in the message
track_alias	The track alias to put in the message
parameters	The parameters to add, if any
track_properties	List of track properties to add, if any

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_publish_blocked()

size_t imquic_moq_add_publish_blocked	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		imquic_moq_namespace *	track_namespace_suffix,
		imquic_moq_track *	track )

Helper method to add a PUBLISH_BLOCKED message to a buffer.

Parameters

moq	The imquic_moq_context generating the message
moq_stream	The imquic_moq_stream instance the message is for
bytes	The buffer to add the message to
blen	The size of the buffer
track_namespace_suffix	Namespace suffix that is impacted
track	Track that is blocked

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_publish_done()

size_t imquic_moq_add_publish_done	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id,
		imquic_moq_pub_done_code	status,
		uint64_t	streams_count,
		const char *	reason )

Helper method to add a PUBLISH_DONE message to a buffer.

Parameters

moq	The imquic_moq_context generating the message
moq_stream	The imquic_moq_stream instance the message is for
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message
status	The status of the subscrption
streams_count	The streams count
reason	Verbose description of the status

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_publish_namespace()

size_t imquic_moq_add_publish_namespace	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id,
		imquic_moq_namespace *	track_namespace,
		imquic_moq_request_parameters *	parameters )

Helper method to add a PUBLISH_NAMESPACE message to a buffer.

Parameters

moq	The imquic_moq_context generating the message
moq_stream	The imquic_moq_stream instance the message is for
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message
track_namespace	Namespace to publish_namespace
parameters	The parameters to add, if any

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_publish_namespace_cancel()

size_t imquic_moq_add_publish_namespace_cancel	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id,
		imquic_moq_request_error_code	error,
		const char *	reason )

Helper method to add a PUBLISH_NAMESPACE_CANCEL message to a buffer.

Note

This message was deprecated in v17

Parameters

moq	The imquic_moq_context generating the message
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message
error	Error code associated to the message
reason	Verbose description of the error, if any

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_publish_namespace_done()

size_t imquic_moq_add_publish_namespace_done	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id )

Helper method to add a PUBLISH_NAMESPACE_DONE message to a buffer.

Note

This message was deprecated in v17

Parameters

moq	The imquic_moq_context generating the message
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_publish_ok()

size_t imquic_moq_add_publish_ok	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id,
		imquic_moq_request_parameters *	parameters )

Helper method to add a PUBLISH_OK message to a buffer.

Note

Deprecated in v18

Parameters

moq	The imquic_moq_context generating the message
moq_stream	The imquic_moq_stream instance the message is for
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message
parameters	The parameters to add, if any

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_request_error()

size_t imquic_moq_add_request_error	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id,
		uint64_t	error,
		const char *	reason,
		uint64_t	retry_interval,
		imquic_moq_redirect *	redirect )

Helper method to add a REQUEST_ERROR message to a buffer.

Parameters

moq	The imquic_moq_context generating the message
moq_stream	The imquic_moq_stream instance the message is for
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message
error	Error code associated to the message
reason	Verbose description of the error, if any
retry_interval	Retry interval in ms
redirect	Redirect structure, if any

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_request_ok()

size_t imquic_moq_add_request_ok	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id,
		imquic_moq_request_parameters *	parameters,
		GList *	track_properties )

Helper method to add a REQUEST_OK message to a buffer.

Parameters

moq	The imquic_moq_context generating the message
moq_stream	The imquic_moq_stream instance the message is for
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message
parameters	The parameters to add, if any
track_properties	List of track properties to add, if any

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_request_update()

size_t imquic_moq_add_request_update	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id,
		uint64_t	sub_request_id,
		imquic_moq_request_parameters *	parameters )

Helper method to add a REQUEST_UPDATE message to a buffer.

Parameters

moq	The imquic_moq_context generating the message
moq_stream	The imquic_moq_stream instance the message is for
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message
sub_request_id	The subscription request ID to put in the message (not added to message starting in v17)
parameters	The parameters to add, if any

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_requests_blocked()

size_t imquic_moq_add_requests_blocked	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	max_request_id )

Helper method to add a REQUESTS_BLOCKED message to a buffer.

Note

This message was deprecated in v17

Parameters

moq	The imquic_moq_context generating the message
bytes	The buffer to add the message to
blen	The size of the buffer
max_request_id	Maximum request ID to put in the message

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_server_setup()

size_t imquic_moq_add_server_setup	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		imquic_moq_setup_options *	options )

Helper method to add a SERVER_SETUP message to a buffer.

Note

This message was deprecated in v17: now both client and server use SETUP

Parameters

moq	The imquic_moq_context generating the message
bytes	The buffer to add the message to
blen	The size of the buffer
options	The setup options to send

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_setup()

size_t imquic_moq_add_setup	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		imquic_moq_setup_options *	options )

Helper method to add a SETUP message to a buffer.

Parameters

moq	The imquic_moq_context generating the message
bytes	The buffer to add the message to
blen	The size of the buffer
options	The setup options to send

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_subgroup_header()

size_t imquic_moq_add_subgroup_header	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id,
		uint64_t	track_alias,
		uint64_t	group_id,
		uint64_t	subgroup_id,
		uint8_t	priority )

Helper to add a SUBGROUP_HEADER message to a buffer.

Note

This will create a new STREAM and send the header: after that, imquic_moq_add_stream_header_subgroup_object is used to send all objects that belong to this subgroup.

Parameters

moq	The imquic_moq_context generating the message
moq_stream	The imquic_moq_stream instance the message is for
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message
track_alias	The track alias to put in the message
group_id	The group ID to put in the message
subgroup_id	The subgroup ID to put in the message
priority	The publisher priority to put in the message

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_subgroup_header_object()

size_t imquic_moq_add_subgroup_header_object	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	object_id,
		uint64_t	object_status,
		uint8_t *	payload,
		size_t	plen,
		uint8_t *	properties,
		size_t	prlen )

Helper to add an object to a buffer, formatted as expected for SUBGROUP_HEADER objects (so not all IDs)

Parameters

moq	The imquic_moq_context generating the object
moq_stream	The imquic_moq_context instance the object is for
bytes	The buffer to add the object to
blen	The size of the buffer
object_id	The object ID
object_status	The object status (only added if the payload length is 0)
payload	The buffer containing the payload of the object
plen	The size of the payload buffer
properties	The buffer containing the properties, if any
prlen	The size of the properties buffer

Returns

The size of the generated object, if successful, or 0 otherwise

imquic_moq_add_subscribe()

size_t imquic_moq_add_subscribe	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id,
		imquic_moq_namespace *	track_namespace,
		imquic_moq_track *	track_name,
		imquic_moq_request_parameters *	parameters )

Helper to add a SUBSCRIBE message to a buffer.

Parameters

moq	The imquic_moq_context generating the message
moq_stream	The imquic_moq_stream instance the message is for
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message
track_namespace	The namespace to put in the message
track_name	The track name to put in the message
parameters	The parameters to add, if any

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_subscribe_namespace()

size_t imquic_moq_add_subscribe_namespace	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id,
		imquic_moq_namespace *	track_namespace,
		imquic_moq_subscribe_namespace_options	subscribe_options,
		imquic_moq_request_parameters *	parameters )

Helper to add a SUBSCRIBE_NAMESPACE message to a buffer.

Parameters

moq	The imquic_moq_context generating the message
moq_stream	The imquic_moq_stream instance the message is for
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message
track_namespace	The namespace to put in the message
subscribe_options	The subscribe options to put in the message (deprecated in v18)
parameters	The parameters to add, if any

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_subscribe_ok()

size_t imquic_moq_add_subscribe_ok	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id,
		uint64_t	track_alias,
		imquic_moq_request_parameters *	parameters,
		GList *	track_properties )

Helper method to add a SUBSCRIBE_OK message to a buffer.

Parameters

moq	The imquic_moq_context generating the message
moq_stream	The imquic_moq_stream instance the message is for
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message
track_alias	The track alias to put in the message
parameters	The parameters to add, if any
track_properties	List of track properties to add, if any

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_subscribe_tracks()

size_t imquic_moq_add_subscribe_tracks	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id,
		imquic_moq_namespace *	track_namespace,
		imquic_moq_request_parameters *	parameters )

Helper to add a SUBSCRIBE_TRACKS message to a buffer.

Parameters

moq	The imquic_moq_context generating the message
moq_stream	The imquic_moq_stream instance the message is for
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message
track_namespace	The namespace to put in the message
parameters	The parameters to add, if any

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_track_status()

size_t imquic_moq_add_track_status	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id,
		imquic_moq_namespace *	track_namespace,
		imquic_moq_track *	track_name,
		imquic_moq_request_parameters *	parameters )

Helper to add a TRACK_STATUS message to a buffer.

Parameters

moq	The imquic_moq_context generating the message
moq_stream	The imquic_moq_stream instance the message is for
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message
track_namespace	The namespace to put in the message
track_name	The track name to put in the message
parameters	The parameters to add, if any

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_add_unsubscribe()

size_t imquic_moq_add_unsubscribe	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	request_id )

Helper method to add an UNSUBSCRIBE message to a buffer.

Note

This message was deprecated in v17

Parameters

moq	The imquic_moq_context generating the message
bytes	The buffer to add the message to
blen	The size of the buffer
request_id	The request ID to put in the message

Returns

The size of the generated message, if successful, or 0 otherwise

imquic_moq_build_properties()

size_t imquic_moq_build_properties	(	imquic_moq_version	version,
		GList *	properties,
		uint8_t *	bytes,
		size_t	blen )

Helper mode to craft a properties buffer out of a GList of imquic_moq_property.

Parameters

[in]	version	The version of the connection
[in]	properties	The list of properties to serialize
[out]	bytes	The buffer to write the properties data to
[in]	blen	The size of the buffer to write to

Returns

How many bytes were written, if successful

imquic_moq_connection_gone()

void imquic_moq_connection_gone	(	imquic_connection *	conn,
		uint64_t	error_code,
		const char *	reason )

Callback the core invokes when an existing MoQ connection is not available anymore.

Parameters

conn	The imquic_connection instance that is now gone
error_code	The error code associated with the event
reason	The reason string associated with the event, if any

imquic_moq_data_message_type_from_subgroup_header()

uint8_t imquic_moq_data_message_type_from_subgroup_header	(	imquic_moq_version	version,
		gboolean	subgroup,
		gboolean	sgid0,
		gboolean	prop,
		gboolean	eog,
		gboolean	priority,
		gboolean	first_object )

Helper function to return the type to use for SUBRGOUP_HEADER out of the individual properties.

Parameters

[in]	version	The version of the connection
[in]	subgroup	Whether the Subgroup ID field is present
[in]	sgid0	Whether the default value of Subgroup ID is 0, in case the field is missing
[in]	prop	Whether there are properties
[in]	eog	Whether there is an End of Group
[in]	priority	Whether there is a Publisher Priority
[in]	first_object	Whether the first object in the stream contains the first object in the subgroup

Returns

The type as a bitmask flag

imquic_moq_data_message_type_str()

const char * imquic_moq_data_message_type_str	(	imquic_moq_data_message_type	type,
		imquic_moq_version	version )

Helper function to serialize to string the name of a imquic_moq_data_message_type value.

Parameters

type	The imquic_data_moq_message_type value
version	The version of the connection

Returns

The type name as a string, if valid, or NULL otherwise

imquic_moq_data_message_type_to_delivery()

imquic_moq_delivery imquic_moq_data_message_type_to_delivery	(	imquic_moq_data_message_type	type,
		imquic_moq_version	version )

Helper function to return the imquic_moq_delivery mode associated to a imquic_moq_data_message_type type.

Parameters

type	The imquic_data_moq_message_type value
version	The version of the connection

Returns

The associated imquic_moq_delivery mode, if successful, or -1 otherwise

imquic_moq_data_message_type_to_subgroup_header()

void imquic_moq_data_message_type_to_subgroup_header	(	imquic_moq_version	version,
		uint8_t	type,
		gboolean *	subgroup,
		gboolean *	sgid0,
		gboolean *	prop,
		gboolean *	eog,
		gboolean *	priority,
		gboolean *	first_object,
		gboolean *	violation )

Helper function to parse a type value for SUBRGOUP_HEADER to the individual properties.

Parameters

[in]	version	The version of the connection
[in]	type	The type to parse
[out]	subgroup	Output variable to write whether the Subgroup ID field is present
[out]	sgid0	Output variable to write whether the default value of Subgroup ID is 0, in case the field is missing
[out]	prop	Output variable to write whether there are properties
[out]	eog	Output variable to write whether there is an End of Group
[out]	priority	Output variable to write whether there is a Publisher Priority
[in]	first_object	Output variable to write whether the first object in the stream contains the first object in the subgroup
[out]	violation	Whether the type has bits set that really shouldn't

imquic_moq_datagram_incoming()

void imquic_moq_datagram_incoming	(	imquic_connection *	conn,
		uint8_t *	bytes,
		uint64_t	length )

Callback the core invokes when there's new incoming data on a DATAGRAM.

Parameters

conn	The imquic_connection instance for which new DATAGRAM data is available
bytes	The new data that is available
length	Size of the new data

imquic_moq_datagram_message_type_parse()

void imquic_moq_datagram_message_type_parse	(	imquic_moq_version	version,
		uint8_t	type,
		gboolean *	payload,
		gboolean *	prop,
		gboolean *	eog,
		gboolean *	oid,
		gboolean *	priority,
		gboolean *	violation )

Helper function to parse a imquic_moq_datagram_message_type value for OBJECT_DATAGRAM or OBJECT_DATAGRAM_STATUS to the individual properties.

Parameters

[in]	version	The version of the connection
[in]	type	The type to parse
[out]	payload	Output variable to write whether there is a payload
[out]	prop	Output variable to write whether there are properties
[out]	eog	Output variable to write whether there is an End of Group
[out]	oid	Output variable to write whether there is an Object ID
[out]	priority	Output variable to write whether there is a Publisher Priority
[out]	violation	Whether the type has bits set that really shouldn't

imquic_moq_datagram_message_type_return()

uint8_t imquic_moq_datagram_message_type_return	(	imquic_moq_version	version,
		gboolean	payload,
		gboolean	prop,
		gboolean	eog,
		gboolean	oid,
		gboolean	priority )

Helper function to return the imquic_moq_datagram_message_type value for OBJECT_DATAGRAM or OBJECT_DATAGRAM_STATUS out of the individual properties.

Parameters

version	The version of the connection
payload	Whether there is a payload
prop	Whether there are properties
eog	Whether there is an End of Group
oid	Whether there is an Object ID
priority	Whether there is a Publisher Priority

Returns

The type as a bitmask flag

imquic_moq_datagram_message_type_str()

const char * imquic_moq_datagram_message_type_str	(	imquic_moq_datagram_message_type	type,
		imquic_moq_version	version )

Helper function to serialize to string the name of a imquic_moq_datagram_message_type value.

Parameters

type	The type value
version	The version of the connection

Returns

The type name as a string, if valid, or NULL otherwise

imquic_moq_deinit()

void imquic_moq_deinit

(

void

)

Uninitialize the native MoQ stack.

imquic_moq_fetch_type_str()

const char * imquic_moq_fetch_type_str

(

imquic_moq_fetch_type

type

)

Helper function to serialize to string the name of a imquic_moq_fetch_type value.

Parameters

type	The imquic_moq_fetch_type value

Returns

The type name as a string, if valid, or NULL otherwise

imquic_moq_generate_fetch_serialization_flags()

uint64_t imquic_moq_generate_fetch_serialization_flags	(	imquic_moq_version	version,
		imquic_moq_fetch_subgroup_type	subgroup,
		gboolean	oid,
		gboolean	group,
		gboolean	priority,
		gboolean	prop,
		gboolean	datagram,
		gboolean	end_ne_range,
		gboolean	end_uk_range )

Helper function to return the serialization flags to use for FETCH out of the individual properties.

Parameters

[in]	version	The version of the connection
[in]	subgroup	The type of subgroup
[in]	oid	Whether the Object ID field is present
[in]	group	Whether the Group ID field is present
[in]	priority	Whether the Publisher field is present
[in]	prop	Whether there are properties
[in]	datagram	Whether the forwarding preference is Datagram
[in]	end_ne_range	Whether this is the end of a non-existent range (ignores all other properties)
[in]	end_uk_range	Whether this is the end of an unknown range (ignores all other properties)

Returns

The serialization flags as an integer

imquic_moq_init()

void imquic_moq_init

(

void

)

Initialize the native MoQ stack at startup.

imquic_moq_is_data_message_type_valid()

gboolean imquic_moq_is_data_message_type_valid	(	imquic_moq_version	version,
		imquic_moq_data_message_type	type )

Helper function to check if a type used for SUBRGOUP_HEADER is valid.

Parameters

[in]	version	The version of the connection
[in]	type	The type to parse

Returns

TRUE if the type is valid, FALSE otherwise

imquic_moq_is_datagram_message_type_valid()

gboolean imquic_moq_is_datagram_message_type_valid	(	imquic_moq_version	version,
		uint8_t	type )

Helper function to check if a type used for OBJECT_DATAGRAM or OBJECT_DATAGRAM_STATUS is valid.

Parameters

[in]	version	The version of the connection
[in]	type	The type to parse

Returns

TRUE if the type is valid, FALSE otherwise

imquic_moq_is_fetch_serialization_flags_valid()

gboolean imquic_moq_is_fetch_serialization_flags_valid	(	imquic_moq_version	version,
		uint64_t	flags )

Helper function to check if serialization flags used for FETCH are valid.

Parameters

[in]	version	The version of the connection
[in]	flags	The flags to parse

Returns

TRUE if the type is valid, FALSE otherwise

imquic_moq_message_type_str()

const char * imquic_moq_message_type_str	(	imquic_moq_message_type	type,
		imquic_moq_version	version )

Helper function to serialize to string the name of a imquic_moq_message_type value.

Parameters

type	The imquic_moq_message_type value
version	The version of the connection

Returns

The type name as a string, if valid, or NULL otherwise

imquic_moq_new_connection()

void imquic_moq_new_connection	(	imquic_connection *	conn,
		void *	user_data )

Callback the core invokes when a new QUIC connection using MoQ is available.

Parameters

conn	The imquic_connection instance that is now available
user_data	Optional user data the user/application may have associated to the endpoint this connection belongs to

imquic_moq_parameter_add_data()

size_t imquic_moq_parameter_add_data	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	param,
		uint64_t	prev,
		uint8_t *	buf,
		size_t	buflen )

Helper to add a MoQ parameter with generic data to a buffer.

Parameters

moq	The imquic_moq_context instance the parameter is for
bytes	Buffer to add the parameter to
blen	Size of the buffer
param	ID of the parameter to add
prev	ID of the previously added parameter, if we're delta-encoding
buf	The data acting as a value for the parameter to add
buflen	The size of the data value

Returns

The size of the parameter, if successful, or 0 otherwise

imquic_moq_parameter_add_location()

size_t imquic_moq_parameter_add_location	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	param,
		uint64_t	prev,
		imquic_moq_location *	location )

Helper to add a MoQ parameter with a location to a buffer.

Parameters

moq	The imquic_moq_context instance the parameter is for
bytes	Buffer to add the parameter to
blen	Size of the buffer
param	ID of the parameter to add
prev	ID of the previously added parameter, if we're delta-encoding
location	The location parameter to add

Returns

The size of the parameter, if successful, or 0 otherwise

imquic_moq_parameter_add_uint8()

size_t imquic_moq_parameter_add_uint8	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	param,
		uint64_t	prev,
		uint8_t	number )

Helper to add a MoQ parameter with a numeric value to a buffer as a byte.

Parameters

moq	The imquic_moq_context instance the parameter is for
bytes	Buffer to add the parameter to
blen	Size of the buffer
param	ID of the parameter to add
prev	ID of the previously added parameter, if we're delta-encoding
number	The numeric value of the parameter to add

Returns

The size of the parameter, if successful, or 0 otherwise

imquic_moq_parameter_add_varint()

size_t imquic_moq_parameter_add_varint	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	param,
		uint64_t	prev,
		uint64_t	number )

Helper to add a MoQ parameter with a numeric value to a buffer as a varint.

Parameters

moq	The imquic_moq_context instance the parameter is for
bytes	Buffer to add the parameter to
blen	Size of the buffer
param	ID of the parameter to add
prev	ID of the previously added parameter, if we're delta-encoding
number	The numeric value of the parameter to add

Returns

The size of the parameter, if successful, or 0 otherwise

imquic_moq_parse_client_setup()

size_t imquic_moq_parse_client_setup	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a CLIENT_SETUP message.

Note

This message was deprecated in v17: now both client and server use SETUP

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_fetch()

size_t imquic_moq_parse_fetch	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a FETCH message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the message came from
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_fetch_cancel()

size_t imquic_moq_parse_fetch_cancel	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a FETCH_CANCEL message.

Note

This message was deprecated in v17

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_fetch_header()

size_t imquic_moq_parse_fetch_header	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a FETCH_HEADER message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the object is from
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_fetch_header_object()

int imquic_moq_parse_fetch_header_object	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		gboolean	complete,
		uint8_t *	error )

Helper to parse a FETCH_HEADER object.

Note

A negative response doesn't mean there's an error, but just that the object isn't complete yet and we need to wait for more data.

Parameters

[in]	moq	The imquic_moq_context instance the object is for
[in]	moq_stream	The imquic_moq_stream instance the object is from
[in]	complete	Whether this data marks the completion of the QUIC stream it came from
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

0 in case of success, or a negative integer otherwise

imquic_moq_parse_fetch_ok()

size_t imquic_moq_parse_fetch_ok	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a FETCH_OK message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the message came from
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_fetch_serialization_flags()

void imquic_moq_parse_fetch_serialization_flags	(	imquic_moq_version	version,
		uint64_t	flags,
		imquic_moq_fetch_subgroup_type *	subgroup,
		gboolean *	oid,
		gboolean *	group,
		gboolean *	priority,
		gboolean *	prop,
		gboolean *	datagram,
		gboolean *	end_ne_range,
		gboolean *	end_uk_range,
		gboolean *	violation )

Helper function to parse serialozation flags for FETCH to the individual properties.

Parameters

[in]	version	The version of the connection
[in]	flags	The serialization flags to parse
[out]	subgroup	Output variable to write the type of subgroup
[out]	oid	Output variable to write whether the Object ID field is present
[out]	group	Output variable to write whether the Group ID field is present
[out]	priority	Output variable to write whether there is a Publisher Priority
[out]	prop	Output variable to write whether there are properties
[out]	datagram	Output variable to write whether the forwarding preference is Datagram
[out]	end_ne_range	Output variable to write whether this is the end of a non-existent range
[out]	end_uk_range	Output variable to write whether this is the end of an unknown range
[out]	violation	Whether the type has bits set that really shouldn't

imquic_moq_parse_goaway()

size_t imquic_moq_parse_goaway	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a GOAWAY message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the request data is from, if not from the control stream
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_max_request_id()

size_t imquic_moq_parse_max_request_id	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a MAX_REQUEST_ID message.

Note

This message was deprecated in v17

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_message()

int imquic_moq_parse_message	(	imquic_moq_context *	moq,
		uint64_t	stream_id,
		uint8_t *	bytes,
		size_t	blen,
		gboolean	complete,
		gboolean	datagram )

Parse an incoming MoQ message.

Note

This will iterate on a buffer, trying to parse as many messages as possible in a sequential way. In case a message is incomplete (e.g., because we're still waiting on STREAM data), we move back to the beginning of the buffer and return, waiting for more data to arrive.

Parameters

moq	The imquic_moq_context instance the message is for
stream_id	The QUIC stream ID the message came from
bytes	The buffer containing the message to parse
blen	Size of the buffer to parse
complete	Whether this data marks the completion of the QUIC stream it came from
datagram	Whether this is not coming from a STREAM but a DATAGRAM

Returns

0 in case of success, or a negative integer otherwise

imquic_moq_parse_namespace()

size_t imquic_moq_parse_namespace	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a NAMESPACE message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the message came from
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_namespace_done()

size_t imquic_moq_parse_namespace_done	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a NAMESPACE_DONE message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the message came from
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_object_datagram()

size_t imquic_moq_parse_object_datagram	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		imquic_moq_datagram_message_type	dtype,
		uint8_t *	error )

Helper to parse an OBJECT_DATAGRAM message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[in]	dtype	Type of OBJECT_DATAGRAM
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_object_datagram_status()

size_t imquic_moq_parse_object_datagram_status	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		imquic_moq_datagram_message_type	dtype,
		uint8_t *	error )

Helper to parse an OBJECT_DATAGRAM_STATUS message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[in]	dtype	Type of OBJECT_DATAGRAM_STATUS
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_padding_datagram()

size_t imquic_moq_parse_padding_datagram	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a PADDING_DATAGRAM message.

Parameters

[in]	moq	The imquic_moq_context instance the padding data is for
[in]	bytes	The buffer containing the padding data to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_padding_stream()

int imquic_moq_parse_padding_stream	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		gboolean	complete,
		uint8_t *	error )

Helper to parse a PADDING_STREAM message.

Parameters

[in]	moq	The imquic_moq_context instance the padding data is for
[in]	moq_stream	The imquic_moq_stream instance the padding data is from
[in]	complete	Whether this data marks the completion of the QUIC stream it came from
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

0 in case of success, or a negative integer otherwise

imquic_moq_parse_properties()

GList * imquic_moq_parse_properties	(	imquic_moq_version	version,
		uint8_t *	properties,
		size_t	plen )

Helper mode to parse a properties buffer to a GList of imquic_moq_property.

Note

The caller owns the list, and is responsible of freeing it and its content

Parameters

version	The version of the connection
properties	The buffer containing the properties data
plen	The size of the buffer containing the properties data

Returns

A GList instance containing a set of imquic_moq_property, if successful, or NULL if no properties were found

imquic_moq_parse_publish()

size_t imquic_moq_parse_publish	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a PUBLISH message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the message came from
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_publish_blocked()

size_t imquic_moq_parse_publish_blocked	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a PUBLISH_BLOCKED message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the message came from
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_publish_done()

size_t imquic_moq_parse_publish_done	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a PUBLISH_DONE message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the message came from
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_publish_namespace()

size_t imquic_moq_parse_publish_namespace	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a PUBLISH_NAMESPACE message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the message came from
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_publish_namespace_cancel()

size_t imquic_moq_parse_publish_namespace_cancel	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a PUBLISH_NAMESPACE_CANCEL message.

Note

This message was deprecated in v17

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_publish_namespace_done()

size_t imquic_moq_parse_publish_namespace_done	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a PUBLISH_NAMESPACE_DONE message.

Note

This message was deprecated in v17

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_publish_ok()

size_t imquic_moq_parse_publish_ok	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a PUBLISH_OK message.

Note

Deprecated in v18

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the message came from
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_request_error()

size_t imquic_moq_parse_request_error	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a REQUEST_ERROR message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the message came from
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_request_ok()

size_t imquic_moq_parse_request_ok	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a REQUEST_OK message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the message came from
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_request_parameter()

size_t imquic_moq_parse_request_parameter	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		imquic_moq_request_parameters *	params,
		uint64_t *	param_type,
		uint8_t *	error )

Helper method to parse a MoQ subscribe parameter.

Note

This method does nothing at the moment

Parameters

[in]	moq	The imquic_moq_context instance to update with the new parameter
[in]	bytes	Buffer containing the parameter to parse
[in]	blen	Size of the buffer to parse
[out]	params	imquic_moq_request_parameters instance to put the parsed parameter in
[out]	param_type	Type of the parsed parameter, needed for delta-decoding
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parameter, if successful, or 0 otherwise

imquic_moq_parse_request_update()

size_t imquic_moq_parse_request_update	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a REQUEST_UPDATE message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the message came from
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_requests_blocked()

size_t imquic_moq_parse_requests_blocked	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a REQUESTS_BLOCKED message.

Note

This message was deprecated in v17

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_server_setup()

size_t imquic_moq_parse_server_setup	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a SERVER_SETUP message.

Note

This message was deprecated in v17: now both client and server use SETUP

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_setup()

size_t imquic_moq_parse_setup	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a SETUP message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_setup_option()

size_t imquic_moq_parse_setup_option	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		imquic_moq_setup_options *	params,
		uint64_t *	param_type,
		uint8_t *	error )

Helper method to parse a MoQ setup parameter.

Note

This method does nothing at the moment

Parameters

[in]	moq	The imquic_moq_context instance to update with the new parameter
[in]	bytes	Buffer containing the parameter to parse
[in]	blen	Size of the buffer to parse
[out]	params	imquic_moq_setup_options instance to put the parsed parameter in
[out]	param_type	Type of the parsed parameter, needed for delta-decoding
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parameter, if successful, or 0 otherwise

imquic_moq_parse_subgroup_header()

size_t imquic_moq_parse_subgroup_header	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		imquic_moq_data_message_type	dtype,
		uint8_t *	error )

Helper to parse a SUBGROUP_HEADER message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the message came from
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[in]	dtype	Type of SUBGROUP_HEADER
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_subgroup_header_object()

int imquic_moq_parse_subgroup_header_object	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		gboolean	complete,
		uint8_t *	error )

Helper to parse a SUBGROUP_HEADER object.

Note

A negative response doesn't mean there's an error, but just that the object isn't complete yet and we need to wait for more data.

Parameters

[in]	moq	The imquic_moq_context instance the object is for
[in]	moq_stream	The imquic_moq_stream instance the object is from
[in]	complete	Whether this data marks the completion of the QUIC stream it came from
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

0 in case of success, or a negative integer otherwise

imquic_moq_parse_subscribe()

size_t imquic_moq_parse_subscribe	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a SUBSCRIBE message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the message came from
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_subscribe_namespace()

size_t imquic_moq_parse_subscribe_namespace	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a SUBSCRIBE_NAMESPACE message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the message came from
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_subscribe_ok()

size_t imquic_moq_parse_subscribe_ok	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a SUBSCRIBE_OK message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the message came from
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_subscribe_tracks()

size_t imquic_moq_parse_subscribe_tracks	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a SUBSCRIBE_TRACKS message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the message came from
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_track_status()

size_t imquic_moq_parse_track_status	(	imquic_moq_context *	moq,
		imquic_moq_stream *	moq_stream,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse a TRACK_STATUS message.

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	moq_stream	The imquic_moq_stream instance the message came from
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_parse_unsubscribe()

size_t imquic_moq_parse_unsubscribe	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	error )

Helper to parse an UNSUBSCRIBE message.

Note

This message was deprecated in v17

Parameters

[in]	moq	The imquic_moq_context instance the message is for
[in]	bytes	The buffer containing the message to parse
[in]	blen	Size of the buffer to parse
[out]	error	In/out property, initialized to 0 and set to something else in case of parsing errors

Returns

The size of the parsed message, if successful, or 0 otherwise

imquic_moq_qlog_control_message_created()

void imquic_moq_qlog_control_message_created	(	imquic_qlog *	qlog,
		uint64_t	stream_id,
		uint8_t *	bytes,
		size_t	length,
		json_t *	message )

Add a control_message_created event.

Parameters

qlog	The imquic_qlog instance to add the event to
stream_id	The Stream ID used for this message
bytes	The content of the message
length	The length of the message
message	The message content

imquic_moq_qlog_control_message_parsed()

void imquic_moq_qlog_control_message_parsed	(	imquic_qlog *	qlog,
		uint64_t	stream_id,
		uint8_t *	bytes,
		size_t	length,
		json_t *	message )

Add a control_message_parsed event.

Parameters

qlog	The imquic_qlog instance to add the event to
stream_id	The Stream ID used for this message
bytes	The content of the message
length	The length of the message
message	The message content

imquic_moq_qlog_fetch_header_created()

void imquic_moq_qlog_fetch_header_created	(	imquic_qlog *	qlog,
		imquic_moq_stream *	stream,
		uint8_t *	bytes,
		size_t	length )

Add a fetch_header_created event.

Parameters

qlog	The imquic_qlog instance to add the event to
stream	The stream used for this header
bytes	The content of the message
length	The length of the message

imquic_moq_qlog_fetch_header_parsed()

void imquic_moq_qlog_fetch_header_parsed	(	imquic_qlog *	qlog,
		imquic_moq_stream *	stream,
		uint8_t *	bytes,
		size_t	length )

Add a fetch_header_parsed event.

Parameters

qlog	The imquic_qlog instance to add the event to
stream	The stream used for this header
bytes	The content of the message
length	The length of the message

imquic_moq_qlog_fetch_object_created()

void imquic_moq_qlog_fetch_object_created	(	imquic_qlog *	qlog,
		uint64_t	stream_id,
		imquic_moq_object *	object )

Add a fetch_object_created event.

Parameters

qlog	The imquic_qlog instance to add the event to
stream_id	The Stream ID used for this object
object	The object instance

imquic_moq_qlog_fetch_object_parsed()

void imquic_moq_qlog_fetch_object_parsed	(	imquic_qlog *	qlog,
		uint64_t	stream_id,
		imquic_moq_object *	object )

Add a fetch_object_parsed event.

Parameters

qlog	The imquic_qlog instance to add the event to
stream_id	The Stream ID used for this object
object	The object instance

imquic_moq_qlog_object_datagram_created()

void imquic_moq_qlog_object_datagram_created	(	imquic_qlog *	qlog,
		imquic_moq_object *	object )

Add a object_datagram_created event.

Parameters

qlog	The imquic_qlog instance to add the event to
object	The object instance

imquic_moq_qlog_object_datagram_parsed()

void imquic_moq_qlog_object_datagram_parsed	(	imquic_qlog *	qlog,
		imquic_moq_object *	object )

Add a object_datagram_parsed event.

Parameters

qlog	The imquic_qlog instance to add the event to
object	The object instance

imquic_moq_qlog_object_datagram_status_created()

void imquic_moq_qlog_object_datagram_status_created	(	imquic_qlog *	qlog,
		imquic_moq_object *	object )

Add a object_datagram_status_created event.

Parameters

qlog	The imquic_qlog instance to add the event to
object	The object instance

imquic_moq_qlog_object_datagram_status_parsed()

void imquic_moq_qlog_object_datagram_status_parsed	(	imquic_qlog *	qlog,
		imquic_moq_object *	object )

Add a object_datagram_status_parsed event.

Parameters

qlog	The imquic_qlog instance to add the event to
object	The object instance

imquic_moq_qlog_stream_type_set()

void imquic_moq_qlog_stream_type_set	(	imquic_qlog *	qlog,
		gboolean	local,
		uint64_t	stream_id,
		const char *	type )

Add a stream_type_set event.

Parameters

qlog	The imquic_qlog instance to add the event to
local	Whether this is a local or remote stream
stream_id	The Stream ID used for this message
type	The stream type

imquic_moq_qlog_subgroup_header_created()

void imquic_moq_qlog_subgroup_header_created	(	imquic_qlog *	qlog,
		imquic_moq_stream *	stream,
		uint8_t *	bytes,
		size_t	length )

Add a subgroup_header_created event.

Parameters

qlog	The imquic_qlog instance to add the event to
stream	The stream used for this header
bytes	The content of the message
length	The length of the message

imquic_moq_qlog_subgroup_header_parsed()

void imquic_moq_qlog_subgroup_header_parsed	(	imquic_qlog *	qlog,
		imquic_moq_stream *	stream,
		uint8_t *	bytes,
		size_t	length )

Add a subgroup_header_parsed event.

Parameters

qlog	The imquic_qlog instance to add the event to
stream	The stream used for this header
bytes	The content of the message
length	The length of the message

imquic_moq_qlog_subgroup_object_created()

void imquic_moq_qlog_subgroup_object_created	(	imquic_qlog *	qlog,
		uint64_t	stream_id,
		imquic_moq_object *	object )

Add a subgroup_object_created event.

Parameters

qlog	The imquic_qlog instance to add the event to
stream_id	The Stream ID used for this object
object	The object instance

imquic_moq_qlog_subgroup_object_parsed()

void imquic_moq_qlog_subgroup_object_parsed	(	imquic_qlog *	qlog,
		uint64_t	stream_id,
		imquic_moq_object *	object )

Add a subgroup_object_parsed event.

Parameters

qlog	The imquic_qlog instance to add the event to
stream_id	The Stream ID used for this object
object	The object instance

imquic_moq_request_parameter_type_str()

const char * imquic_moq_request_parameter_type_str	(	imquic_moq_request_parameter_type	type,
		imquic_moq_version	version )

Helper function to serialize to string the name of a imquic_moq_request_parameter_type value.

Parameters

type	The imquic_moq_request_parameter_type value
version	The version of the connection

Returns

The type name as a string, if valid, or NULL otherwise

imquic_moq_request_parameters_serialize()

size_t imquic_moq_request_parameters_serialize	(	imquic_moq_context *	moq,
		imquic_moq_message_type	request,
		imquic_moq_request_parameters *	parameters,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	params_num )

Helper to serialize a imquic_moq_request_parameters set to a buffer.

Parameters

[in]	moq	The imquic_moq_context instance the parameter is for
[in]	request	The imquic_moq_message_type request originating the parameters to serialize
[in]	parameters	The imquic_moq_request_parameters to serialize
[out]	bytes	The buffer to add paramerers to
[in]	blen	The size of the buffer
[out]	params_num	The number of parameters added to the buffer

Returns

The size of the serialized parameters, if successful, or 0 otherwise

imquic_moq_reset_stream_incoming()

void imquic_moq_reset_stream_incoming	(	imquic_connection *	conn,
		uint64_t	stream_id,
		uint64_t	error_code )

Callback the core invokes when there's an incoming RESET_STREAM.

Parameters

conn	The imquic_connection instance for which new RESET_STREAM is available
stream_id	The ID of the stream that was reset
error_code	The error code that was received

imquic_moq_setup_option_add_data()

size_t imquic_moq_setup_option_add_data	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	opt,
		uint64_t	prev,
		uint8_t *	buf,
		size_t	buflen )

Helper to add a MoQ setup option with generic data to a buffer.

Parameters

moq	The imquic_moq_context instance the setup option is for
bytes	Buffer to add the setup option to
blen	Size of the buffer
opt	ID of the setup option to add
prev	ID of the previously added setup option, if we're delta-encoding
buf	The data acting as a value for the setup option to add
buflen	The size of the data value

Returns

The size of the setup option, if successful, or 0 otherwise

imquic_moq_setup_option_add_int()

size_t imquic_moq_setup_option_add_int	(	imquic_moq_context *	moq,
		uint8_t *	bytes,
		size_t	blen,
		uint64_t	opt,
		uint64_t	prev,
		uint64_t	number )

Helper to add a MoQ setup option with a numeric value to a buffer.

Parameters

moq	The imquic_moq_context instance the setup option is for
bytes	Buffer to add the setup option to
blen	Size of the buffer
opt	ID of the setup option to add
prev	ID of the previously added setup option, if we're delta-encoding
number	The numeric value of the setup option to add

Returns

The size of the setup option, if successful, or 0 otherwise

imquic_moq_setup_option_type_str()

const char * imquic_moq_setup_option_type_str

(

imquic_moq_setup_option_type

type

)

Helper function to serialize to string the name of a imquic_moq_setup_option_type value.

Parameters

type	The imquic_moq_setup_option_type value

Returns

The type name as a string, if valid, or NULL otherwise

imquic_moq_setup_options_serialize()

size_t imquic_moq_setup_options_serialize	(	imquic_moq_context *	moq,
		imquic_moq_setup_options *	options,
		uint8_t *	bytes,
		size_t	blen,
		uint8_t *	params_num )

Helper to serialize a imquic_moq_setup_options set to a buffer.

Parameters

[in]	moq	The imquic_moq_context instance the parameter is for
[in]	options	The imquic_moq_setup_options to serialize
[out]	bytes	The buffer to add paramerers to
[in]	blen	The size of the buffer
[out]	params_num	The number of parameters added to the buffer

Returns

The size of the serialized parameters, if successful, or 0 otherwise

imquic_moq_stop_sending_incoming()

void imquic_moq_stop_sending_incoming	(	imquic_connection *	conn,
		uint64_t	stream_id,
		uint64_t	error_code )

Callback the core invokes when there's an incoming STOP_SENDING.

Parameters

conn	The imquic_connection instance for which new STOP_SENDING is available
stream_id	The ID of the stream to stop sending data on
error_code	The error code that was received

imquic_moq_stream_create()

imquic_moq_stream * imquic_moq_stream_create

(

void

)

Create a new MoQ stream.

Returns

A pointer to a new moq_stream instance, if successful, or NULL otherwise

imquic_moq_stream_destroy()

void imquic_moq_stream_destroy

(

imquic_moq_stream *

moq_stream

)

Destroy an existing MoQ stream.

Parameters

moq_stream

MoQ stream to destroy

imquic_moq_stream_incoming()

void imquic_moq_stream_incoming	(	imquic_connection *	conn,
		uint64_t	stream_id,
		uint8_t *	bytes,
		uint64_t	length,
		gboolean	complete )

Callback the core invokes when there's new incoming data on a STREAM.

Parameters

conn	The imquic_connection instance for which new STREAM data is available
stream_id	The QUIC Stream ID for which new data is available
bytes	The new data that is available
length	Size of the new data
complete	Whether this data marks the end of this STREAM

imquic_moq_subscription_create()

imquic_moq_subscription * imquic_moq_subscription_create	(	uint64_t	request_id,
		uint64_t	track_alias )

Helper to create a new subscription instance.

Parameters

request_id	The request ID
track_alias	The track alias

Returns

A pointer to a imquic_moq_subscription, if successful, or NULL otherwise

imquic_moq_subscription_destroy()

void imquic_moq_subscription_destroy

(

imquic_moq_subscription *

moq_sub

)

Destroy an existing MoQ subscription.

Parameters

moq_sub

MoQ subscription to destroy

imquic_qlog_moq_message_add_namespace()

void imquic_qlog_moq_message_add_namespace	(	json_t *	message,
		imquic_moq_namespace *	track_namespace,
		const char *	name )

Helper to add a stringified namespace tuple array to a message.

Note

This automatically fills in the track_namespace property

Parameters

message	The message object to update
track_namespace	The namespace to serialize to an array
name	The name the array should have in the message object

imquic_qlog_moq_message_add_properties()

void imquic_qlog_moq_message_add_properties	(	json_t *	message,
		GList *	properties,
		const char *	name )

Helper to add a stringified array of propertie headers to a message.

Parameters

message	The message object to update
properties	The list of properties to convert
name	The name the array should have in the message object

imquic_qlog_moq_message_add_request_parameters()

void imquic_qlog_moq_message_add_request_parameters	(	json_t *	message,
		imquic_moq_version	version,
		imquic_moq_request_parameters *	parameters,
		const char *	name )

Helper to add a stringified array of subscribe parameters to a message.

Note

This automatically fills in a property with the specified name

Parameters

message	The message object to update
version	The version of the MoQ connection this message belongs to
parameters	The subscribe parameters to convert
name	The name the array should have in the message object

imquic_qlog_moq_message_add_setup_options()

void imquic_qlog_moq_message_add_setup_options	(	json_t *	message,
		imquic_moq_setup_options *	options,
		const char *	name )

Helper to add a stringified array of setup parameters to a message.

Note

This automatically fills in a property with the specified name

Parameters

message	The message object to update
options	The setup options to convert
name	The name the array should have in the message object

imquic_qlog_moq_message_add_track()

void imquic_qlog_moq_message_add_track	(	json_t *	message,
		imquic_moq_track *	track_name )

Helper to add a stringified track name to a message.

Note

This automatically fills in the track_name property

Parameters

message	The message object to update
track_name	The track name to add

imquic_qlog_moq_message_prepare()

json_t * imquic_qlog_moq_message_prepare

(

const char *

type

)

Helper to create a new QLOG MoQT message.

Note

This automatically fills in the type property

Parameters

type	The name of the message

Returns

A message instance to fill in before using it it, if successful, or NULL otherwise
