roq.h File Reference

RTP Over QUIC (RoQ) stack (headers) More...

#include <glib.h>
#include "../imquic/roq.h"
#include "qlog.h"
#include "refcount.h"

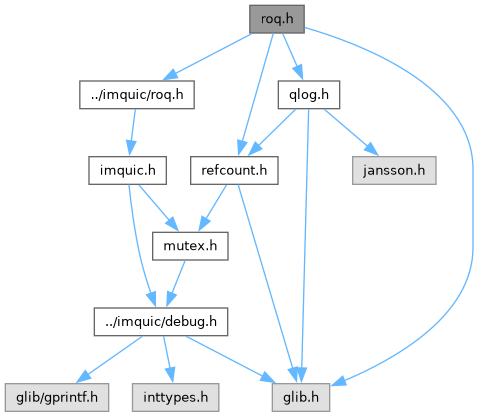

Include dependency graph for internal/roq.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	imquic_roq_endpoint
	RoQ endpoint instance. More...
struct	imquic_roq_stream
	RoQ stream (when using the same stream for multiple packets) More...
struct	imquic_roq_callbacks
	RoQ public callbacks. More...

Macros
#define	IMQUIC_ROQ   7499633

Typedefs
typedef struct imquic_roq_endpoint	imquic_roq_endpoint
	RoQ endpoint instance.
typedef struct imquic_roq_stream	imquic_roq_stream
	RoQ stream (when using the same stream for multiple packets)
typedef struct imquic_roq_callbacks	imquic_roq_callbacks
	RoQ public callbacks.

Functions
void	imquic_roq_init (void)
	Initialize the native RoQ stack at startup.
void	imquic_roq_deinit (void)
	Uninitialize the native RoQ stack.
Internal callbacks for RoQ endpoints
void	imquic_roq_new_connection (imquic_connection *conn, void *user_data)
	Callback the core invokes when a new QUIC connection using RoQ is available.
void	imquic_roq_stream_incoming (imquic_connection *conn, uint64_t stream_id, uint8_t *bytes, uint64_t length, gboolean complete)
	Callback the core invokes when there's new incoming data on a STREAM.
void	imquic_roq_datagram_incoming (imquic_connection *conn, uint8_t *bytes, uint64_t length)
	Callback the core invokes when there's new incoming data on a DATAGRAM.
void	imquic_roq_connection_gone (imquic_connection *conn)
	Callback the core invokes when an existing RoQ connection is not available anymore.
QLOG events tracing for RoQ
void	imquic_roq_qlog_add_rtp_packet (json_t *data, uint64_t flow_id, uint64_t length)
	Helper to add fields for RtpPacket to an event.
void	imquic_roq_qlog_stream_opened (imquic_qlog *qlog, uint64_t stream_id, uint64_t flow_id)
	Add a stream_opened event.
void	imquic_roq_qlog_stream_packet_created (imquic_qlog *qlog, uint64_t stream_id, uint64_t flow_id, uint8_t *bytes, size_t length)
	Add a stream_packet_created event.
void	imquic_roq_qlog_stream_packet_parsed (imquic_qlog *qlog, uint64_t stream_id, uint64_t flow_id, uint8_t *bytes, size_t length)
	Add a stream_packet_parsed event.
void	imquic_roq_qlog_datagram_packet_created (imquic_qlog *qlog, uint64_t flow_id, uint8_t *bytes, size_t length)
	Add a datagram_packet_created event.
void	imquic_roq_qlog_datagram_packet_parsed (imquic_qlog *qlog, uint64_t flow_id, uint8_t *bytes, size_t length)
	Add a datagram_packet_parsed event.

Detailed Description

RTP Over QUIC (RoQ) stack (headers)

Author

Lorenzo Miniero loren.nosp@m.zo@m.nosp@m.eetec.nosp@m.ho.c.nosp@m.om

Copyright

MIT License

Implementation of the RTP Over QUIC (RoQ) stack as part of the library itself. At the time of writing, this implements (most of) version -10 of the protocol.

Note

This is the internal implementation of RoQ in the library. You're still free to only use imquic as the underlying QUIC/WebTransport library, and take care of the RoQ implementation on your own instead: in order to do that, use the generic imquic client/server creation utilities, rather than the RoQ specific ones.

Macro Definition Documentation

IMQUIC_ROQ

#define IMQUIC_ROQ   7499633

Typedef Documentation

imquic_roq_callbacks

typedef struct imquic_roq_callbacks imquic_roq_callbacks

RoQ public callbacks.

imquic_roq_endpoint

typedef struct imquic_roq_endpoint imquic_roq_endpoint

RoQ endpoint instance.

imquic_roq_stream

typedef struct imquic_roq_stream imquic_roq_stream

RoQ stream (when using the same stream for multiple packets)

Function Documentation

imquic_roq_connection_gone()

void imquic_roq_connection_gone

(

imquic_connection *

conn

)

Callback the core invokes when an existing RoQ connection is not available anymore.

Parameters

conn	The imquic_connection instance that is now gone

imquic_roq_datagram_incoming()

void imquic_roq_datagram_incoming	(	imquic_connection *	conn,
		uint8_t *	bytes,
		uint64_t	length )

Callback the core invokes when there's new incoming data on a DATAGRAM.

Parameters

conn	The imquic_connection instance for which new DATAGRAM data is available
bytes	The new data that is available
length	Size of the new data

imquic_roq_deinit()

void imquic_roq_deinit

(

void

)

Uninitialize the native RoQ stack.

imquic_roq_init()

void imquic_roq_init

(

void

)

Initialize the native RoQ stack at startup.

imquic_roq_new_connection()

void imquic_roq_new_connection	(	imquic_connection *	conn,
		void *	user_data )

Callback the core invokes when a new QUIC connection using RoQ is available.

Parameters

conn	The imquic_connection instance that is now available
user_data	Optional user data the user/application may have associated to the endpoint this connection belongs to

imquic_roq_qlog_add_rtp_packet()

void imquic_roq_qlog_add_rtp_packet	(	json_t *	data,
		uint64_t	flow_id,
		uint64_t	length )

Helper to add fields for RtpPacket to an event.

Parameters

data	The data object to add the properties to
flow_id	The RoQ flow ID to add
length	The length of the RTP packet

imquic_roq_qlog_datagram_packet_created()

void imquic_roq_qlog_datagram_packet_created	(	imquic_qlog *	qlog,
		uint64_t	flow_id,
		uint8_t *	bytes,
		size_t	length )

Add a datagram_packet_created event.

Parameters

qlog	The imquic_qlog instance to add the event to
flow_id	The RoQ flow ID used in the datagram
bytes	The content of the RTP packet
length	The length of the RTP packet

imquic_roq_qlog_datagram_packet_parsed()

void imquic_roq_qlog_datagram_packet_parsed	(	imquic_qlog *	qlog,
		uint64_t	flow_id,
		uint8_t *	bytes,
		size_t	length )

Add a datagram_packet_parsed event.

Parameters

qlog	The imquic_qlog instance to add the event to
flow_id	The RoQ flow ID used in the datagram
bytes	The content of the RTP packet
length	The length of the RTP packet

imquic_roq_qlog_stream_opened()

void imquic_roq_qlog_stream_opened	(	imquic_qlog *	qlog,
		uint64_t	stream_id,
		uint64_t	flow_id )

Add a stream_opened event.

Parameters

qlog	The imquic_qlog instance to add the event to
stream_id	The Stream ID that was opened
flow_id	The RoQ flow ID used in the stream

imquic_roq_qlog_stream_packet_created()

void imquic_roq_qlog_stream_packet_created	(	imquic_qlog *	qlog,
		uint64_t	stream_id,
		uint64_t	flow_id,
		uint8_t *	bytes,
		size_t	length )

Add a stream_packet_created event.

Parameters

qlog	The imquic_qlog instance to add the event to
stream_id	The Stream ID used for the packet
flow_id	The RoQ flow ID used in the stream
bytes	The content of the RTP packet
length	The length of the RTP packet

imquic_roq_qlog_stream_packet_parsed()

void imquic_roq_qlog_stream_packet_parsed	(	imquic_qlog *	qlog,
		uint64_t	stream_id,
		uint64_t	flow_id,
		uint8_t *	bytes,
		size_t	length )

Add a stream_packet_parsed event.

Parameters

qlog	The imquic_qlog instance to add the event to
stream_id	The Stream ID used for the packet
flow_id	The RoQ flow ID used in the stream
bytes	The content of the RTP packet
length	The length of the RTP packet

imquic_roq_stream_incoming()

void imquic_roq_stream_incoming	(	imquic_connection *	conn,
		uint64_t	stream_id,
		uint8_t *	bytes,
		uint64_t	length,
		gboolean	complete )

Callback the core invokes when there's new incoming data on a STREAM.

Parameters

conn	The imquic_connection instance for which new STREAM data is available
stream_id	The QUIC Stream ID for which new data is available
bytes	The new data that is available
length	Size of the new data
complete	Whether this data marks the end of this STREAM
