moq.h File Reference

imquic MoQ public interface (headers) More...

#include "imquic.h"

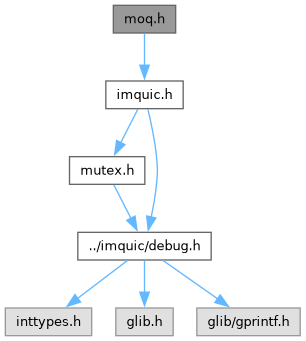

Include dependency graph for moq.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	imquic_moq_namespace
	MoQ Track Namespace. More...
struct	imquic_moq_name
	MoQ Track Name. More...
struct	imquic_moq_location
	MoQ Group/Object couple (for ranges) More...
struct	imquic_moq_location_range
	MoQ location range (from where to where, e.g., for FETCH) More...
struct	imquic_moq_subscription_filter
	MoQ subscription filter. More...
struct	imquic_moq_request_parameters
	MoQ request parameters. More...
struct	imquic_moq_object_extension
	MoQ Object Extension. More...
struct	imquic_moq_object
	MoQ Object. More...
struct	imquic_moq_auth_token
	MoQ Authorization Token. More...
struct	imquic_moq_auth_token::imquic_moq_auth_token_value
	Token value, if any. More...

Typedefs
typedef enum imquic_moq_auth_token_alias_type	imquic_moq_auth_token_alias_type
	MoQ Authorization Token Alias Type.
typedef struct imquic_moq_auth_token	imquic_moq_auth_token
	MoQ Authorization Token.
typedef enum imquic_moq_version	imquic_moq_version
	Versions that can be negotiated.

Enumerations
enum	imquic_moq_auth_token_alias_type { IMQUIC_MOQ_AUTH_TOKEN_DELETE = 0x0 , IMQUIC_MOQ_AUTH_TOKEN_REGISTER = 0x1 , IMQUIC_MOQ_AUTH_TOKEN_USE_ALIAS = 0x2 , IMQUIC_MOQ_AUTH_TOKEN_USE_VALUE = 0x3 }
	MoQ Authorization Token Alias Type. More...
enum	imquic_moq_version {   IMQUIC_MOQ_VERSION_BASE = 0xff000000 , IMQUIC_MOQ_VERSION_MIN = 0xff00000B , IMQUIC_MOQ_VERSION_11 = 0xff00000B , IMQUIC_MOQ_VERSION_12 = 0xff00000C ,   IMQUIC_MOQ_VERSION_13 = 0xff00000D , IMQUIC_MOQ_VERSION_14 = 0xff00000E , IMQUIC_MOQ_VERSION_15 = 0xff00000F , IMQUIC_MOQ_VERSION_16 = 0xff000010 ,   IMQUIC_MOQ_VERSION_MAX = IMQUIC_MOQ_VERSION_16 , IMQUIC_MOQ_VERSION_ANY = 0xff0000ff , IMQUIC_MOQ_VERSION_ANY_LEGACY = 0xff0000fe }
	Versions that can be negotiated. More...

Functions
const char *	imquic_moq_auth_token_alias_type_str (imquic_moq_auth_token_alias_type type)
	Helper function to serialize to string the name of a imquic_moq_auth_token_alias_type property.
int	imquic_moq_parse_auth_token (uint8_t *bytes, size_t blen, imquic_moq_auth_token *token)
	Helper mode to parse an auth token buffer to a imquic_moq_auth_token instance.
size_t	imquic_moq_build_auth_token (imquic_moq_auth_token *token, uint8_t *bytes, size_t blen)
	Helper mode to craft an auth token buffer out of a imquic_moq_auth_token instance.
const char *	imquic_moq_version_str (imquic_moq_version version)
	Helper function to serialize to string the name of a imquic_moq_version property.
imquic_moq_version	imquic_moq_get_version (imquic_connection *conn)
	Helper function to get the MoQ version associated with a connection.
int	imquic_moq_set_connection_auth (imquic_connection *conn, uint8_t *auth, size_t authlen)
	Method to provide credentials, as a client, on a new connection. If credentials need to provided, this must be done as soon as the connection is established, and before sending any MoQ message. A good place to do that is the callback fired when a new connection is available.
int	imquic_moq_set_max_request_id (imquic_connection *conn, uint64_t max_request_id)
	Helper function to set the Maximum Request ID a subscriber can send.
uint64_t	imquic_moq_get_next_request_id (imquic_connection *conn)
	Helper function to get the next Request ID we can use.
const char *	imquic_moq_get_remote_implementation (imquic_connection *conn)
	Helper function to return the MoQ implementation name as a string, if provided by the peer of this connection.
MoQ endpoints management
imquic_server *	imquic_create_moq_server (const char *name,...)
	Method to create a new MoQ server, using variable arguments to dictate what the server should do (e.g., port to bind to, ALPN, etc.). Variable arguments are in the form of a sequence of name-value started with a IMQUIC_CONFIG_INIT and ended by a IMQUIC_CONFIG_DONE , e.g.:
imquic_client *	imquic_create_moq_client (const char *name,...)
	Method to create a new MoQ client, using variable arguments to dictate what the client should do (e.g., address to connect to, ALPN, etc.). Variable arguments are in the form of a sequence of name-value started with a IMQUIC_CONFIG_INIT and ended by a IMQUIC_CONFIG_DONE , e.g.:
void	imquic_set_new_moq_connection_cb (imquic_endpoint *endpoint, void(*new_moq_connection)(imquic_connection *conn, void *user_data))
	Configure the callback function to be notified about new QUIC connections on the configured endpoint. For a server, it will be triggered any time a client successfully connects to the server; for a client, it will be triggered when the client successfully connects to the server. Notice that this precedes the MoQ setup/handshakes, which means you'll need to wait until the callback set in imquic_set_moq_ready_cb is fired, before being able to use the MoQ API for publishing/subscribing.
void	imquic_set_incoming_moq_connection_cb (imquic_endpoint *endpoint, uint64_t(*incoming_moq_connection)(imquic_connection *conn, uint8_t *auth, size_t authlen))
	Configure the callback function to be notified, as a server, when a CLIENT_SETUP is received. This is a chance, for instance, to evaluate the credentials that were provided. It's the application responsibility to accept or reject the connection at this point: returning 0 will accept the connection, while returning an error code will reject and close it. Connections are automatically accepted if this callback is not configured.
void	imquic_set_moq_ready_cb (imquic_endpoint *endpoint, void(*moq_ready)(imquic_connection *conn))
	Configure the callback function to be notified when a MoQ connection has been successfully established. After this, the MoQ APIs can be used to start exchanging MoQ messages.
void	imquic_set_incoming_publish_namespace_cb (imquic_endpoint *endpoint, void(*incoming_publish_namespace)(imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns, imquic_moq_request_parameters *parameters))
	Configure the callback function to be notified when there's an incoming PUBLISH_NAMESPACE request.
void	imquic_set_incoming_publish_namespace_cancel_cb (imquic_endpoint *endpoint, void(*incoming_publish_namespace_cancel)(imquic_connection *conn, imquic_moq_namespace *tns, imquic_moq_request_error_code error_code, const char *reason))
	Configure the callback function to be notified when there's an incoming PUBLISH_NAMESPACE_CANCEL request.
void	imquic_set_publish_namespace_accepted_cb (imquic_endpoint *endpoint, void(*publish_namespace_accepted)(imquic_connection *conn, uint64_t request_id, imquic_moq_request_parameters *parameters))
	Configure the callback function to be notified when an PUBLISH_NAMESPACE we previously sent was accepted.
void	imquic_set_publish_namespace_error_cb (imquic_endpoint *endpoint, void(*publish_namespace_error)(imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t retry_interval))
	Configure the callback function to be notified when an PUBLISH_NAMESPACE we previously sent was rejected with an error.
void	imquic_set_publish_namespace_done_cb (imquic_endpoint *endpoint, void(*publish_namespace_done)(imquic_connection *conn, imquic_moq_namespace *tns))
	Configure the callback function to be notified when there's an incoming PUBLISH_NAMESPACE_DONE request.
void	imquic_set_incoming_publish_cb (imquic_endpoint *endpoint, void(*incoming_publish)(imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns, imquic_moq_name *tn, uint64_t track_alias, imquic_moq_request_parameters *parameters, GList *track_extensions))
	Configure the callback function to be notified when there's an incoming PUBLISH request.
void	imquic_set_publish_accepted_cb (imquic_endpoint *endpoint, void(*publish_accepted)(imquic_connection *conn, uint64_t request_id, imquic_moq_request_parameters *parameters))
	Configure the callback function to be notified when a PUBLISH we previously sent was accepted.
void	imquic_set_publish_error_cb (imquic_endpoint *endpoint, void(*publish_error)(imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t retry_interval))
	Configure the callback function to be notified when a PUBLISH we previously sent was rejected with an error.
void	imquic_set_incoming_subscribe_cb (imquic_endpoint *endpoint, void(*incoming_subscribe)(imquic_connection *conn, uint64_t request_id, uint64_t track_alias, imquic_moq_namespace *tns, imquic_moq_name *tn, imquic_moq_request_parameters *parameters))
	Configure the callback function to be notified when there's an incoming SUBSCRIBE request.
void	imquic_set_subscribe_accepted_cb (imquic_endpoint *endpoint, void(*subscribe_accepted)(imquic_connection *conn, uint64_t request_id, uint64_t track_alias, imquic_moq_request_parameters *parameters, GList *track_extensions))
	Configure the callback function to be notified when a SUBSCRIBE we previously sent was accepted.
void	imquic_set_subscribe_error_cb (imquic_endpoint *endpoint, void(*subscribe_error)(imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t track_alias, uint64_t retry_interval))
	Configure the callback function to be notified when a SUBSCRIBE we previously sent was rejected with an error.
void	imquic_set_request_updated_cb (imquic_endpoint *endpoint, void(*request_updated)(imquic_connection *conn, uint64_t request_id, uint64_t sub_request_id, imquic_moq_request_parameters *parameters))
	Configure the callback function to be notified when an update is received for a request (e.g., a SUBSCRIBE ) we previously sent.
void	imquic_set_request_update_accepted_cb (imquic_endpoint *endpoint, void(*request_update_accepted)(imquic_connection *conn, uint64_t request_id, imquic_moq_request_parameters *parameters))
	Configure the callback function to be notified when an OK is received for a REQUEST_UPDATE we previously sent.
void	imquic_set_request_update_error_cb (imquic_endpoint *endpoint, void(*request_update_error)(imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t retry_interval))
	Configure the callback function to be notified when a REQUEST_UPDATE we previously sent was rejected with an error.
void	imquic_set_publish_done_cb (imquic_endpoint *endpoint, void(*publish_done)(imquic_connection *conn, uint64_t request_id, imquic_moq_pub_done_code status_code, uint64_t streams_count, const char *reason))
	Configure the callback function to be notified when a PUBLISH we received or a SUBSCRIBE we sent is now done.
void	imquic_set_incoming_unsubscribe_cb (imquic_endpoint *endpoint, void(*incoming_unsubscribe)(imquic_connection *conn, uint64_t request_id))
	Configure the callback function to be notified when there's an incoming UNSUBSCRIBE request.
void	imquic_set_requests_blocked_cb (imquic_endpoint *endpoint, void(*requests_blocked)(imquic_connection *conn, uint64_t max_request_id))
	Configure the callback function to be notified when there's an incoming REQUESTS_BLOCKED request.
void	imquic_set_incoming_subscribe_namespace_cb (imquic_endpoint *endpoint, void(*incoming_subscribe_namespace)(imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns, imquic_moq_subscribe_namespace_options subscribe_options, imquic_moq_request_parameters *parameters))
	Configure the callback function to be notified when there's an incoming SUBSCRIBE_NAMESPACE request.
void	imquic_set_subscribe_namespace_accepted_cb (imquic_endpoint *endpoint, void(*subscribe_namespace_accepted)(imquic_connection *conn, uint64_t request_id, imquic_moq_request_parameters *parameters))
	Configure the callback function to be notified when an SUBSCRIBE_NAMESPACE we previously sent was accepted.
void	imquic_set_subscribe_namespace_error_cb (imquic_endpoint *endpoint, void(*subscribe_namespace_error)(imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t retry_interval))
	Configure the callback function to be notified when an SUBSCRIBE_NAMESPACE we previously sent was rejected with an error.
void	imquic_set_incoming_unsubscribe_namespace_cb (imquic_endpoint *endpoint, void(*incoming_unsubscribe_namespace)(imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns))
	Configure the callback function to be notified when there's an incoming UNSUBSCRIBE_NAMESPACE request.
void	imquic_set_incoming_namespace_cb (imquic_endpoint *endpoint, void(*incoming_namespace)(imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns))
	Configure the callback function to be notified when there's an incoming NAMESPACE request.
void	imquic_set_incoming_namespace_done_cb (imquic_endpoint *endpoint, void(*incoming_namespace_done)(imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns))
	Configure the callback function to be notified when there's an incoming NAMESPACE_DONE request.
void	imquic_set_incoming_standalone_fetch_cb (imquic_endpoint *endpoint, void(*incoming_standalone_fetch)(imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns, imquic_moq_name *tn, imquic_moq_location_range *range, imquic_moq_request_parameters *parameters))
	Configure the callback function to be notified when there's an incoming standalone FETCH request.
void	imquic_set_incoming_joining_fetch_cb (imquic_endpoint *endpoint, void(*incoming_joining_fetch)(imquic_connection *conn, uint64_t request_id, uint64_t joining_request_id, gboolean absolute, uint64_t joining_start, imquic_moq_request_parameters *parameters))
	Configure the callback function to be notified when there's an incoming joining FETCH request.
void	imquic_set_incoming_fetch_cancel_cb (imquic_endpoint *endpoint, void(*incoming_fetch_cancel)(imquic_connection *conn, uint64_t request_id))
	Configure the callback function to be notified when there's an incoming FETCH_CANCEL request.
void	imquic_set_fetch_accepted_cb (imquic_endpoint *endpoint, void(*fetch_accepted)(imquic_connection *conn, uint64_t request_id, imquic_moq_location *largest, imquic_moq_request_parameters *parameters, GList *track_extensions))
	Configure the callback function to be notified when an FETCH we previously sent was accepted.
void	imquic_set_fetch_error_cb (imquic_endpoint *endpoint, void(*fetch_error)(imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t retry_interval))
	Configure the callback function to be notified when an FETCH we previously sent was rejected with an error.
void	imquic_set_incoming_track_status_cb (imquic_endpoint *endpoint, void(*incoming_track_status)(imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns, imquic_moq_name *tn, imquic_moq_request_parameters *parameters))
	Configure the callback function to be notified when there's an incoming TRACK_STATUS request.
void	imquic_set_track_status_accepted_cb (imquic_endpoint *endpoint, void(*track_status_accepted)(imquic_connection *conn, uint64_t request_id, uint64_t track_alias, imquic_moq_request_parameters *parameters))
	Configure the callback function to be notified when a TRACK_STATUS we previously sent was accepted.
void	imquic_set_track_status_error_cb (imquic_endpoint *endpoint, void(*track_status_error)(imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t retry_interval))
	Configure the callback function to be notified when a TRACK_STATUS we previously sent was rejected with an error.
void	imquic_set_incoming_object_cb (imquic_endpoint *endpoint, void(*incoming_object)(imquic_connection *conn, imquic_moq_object *object))
	Configure the callback function to be notified when there's an incoming MoQ object, independently of how it was multiplexed on the wire.
void	imquic_set_incoming_goaway_cb (imquic_endpoint *endpoint, void(*incoming_goaway)(imquic_connection *conn, const char *uri))
	Configure the callback function to be notified when there's an incoming GOAWAY request.
void	imquic_set_moq_connection_gone_cb (imquic_endpoint *endpoint, void(*moq_connection_gone)(imquic_connection *conn))
	Configure the callback function to be notified when an existing MoQ connection handled by this endpoint has been closed/shut down.
Using the MoQ API
int	imquic_moq_publish_namespace (imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns, imquic_moq_request_parameters *parameters)
	Function to send a PUBLISH_NAMESPACE request.
int	imquic_moq_accept_publish_namespace (imquic_connection *conn, uint64_t request_id, imquic_moq_request_parameters *parameters)
	Function to accept an incoming PUBLISH_NAMESPACE request.
int	imquic_moq_reject_publish_namespace (imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t retry_interval)
	Function to reject an incoming PUBLISH_NAMESPACE request.
int	imquic_moq_publish_namespace_done (imquic_connection *conn, imquic_moq_namespace *tns)
	Function to send a PUBLISH_NAMESPACE_DONE request.
int	imquic_moq_publish (imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns, imquic_moq_name *tn, uint64_t track_alias, imquic_moq_request_parameters *parameters, GList *track_extensions)
	Function to send a PUBLISH request.
int	imquic_moq_accept_publish (imquic_connection *conn, uint64_t request_id, imquic_moq_request_parameters *parameters)
	Function to accept an incoming PUBLISH request.
int	imquic_moq_reject_publish (imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t retry_interval)
	Function to reject an incoming PUBLISH request.
int	imquic_moq_subscribe (imquic_connection *conn, uint64_t request_id, uint64_t track_alias, imquic_moq_namespace *tns, imquic_moq_name *tn, imquic_moq_request_parameters *parameters)
	Function to send a SUBSCRIBE request.
int	imquic_moq_accept_subscribe (imquic_connection *conn, uint64_t request_id, uint64_t track_alias, imquic_moq_request_parameters *parameters, GList *track_extensions)
	Function to accept an incoming SUBSCRIBE request.
int	imquic_moq_reject_subscribe (imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t track_alias, uint64_t retry_interval)
	Function to reject an incoming SUBSCRIBE request.
int	imquic_moq_update_request (imquic_connection *conn, uint64_t request_id, uint64_t sub_request_id, imquic_moq_request_parameters *parameters)
	Function to send a REQUEST_UPDATE request.
int	imquic_moq_accept_request_update (imquic_connection *conn, uint64_t request_id, imquic_moq_request_parameters *parameters)
	Function to accept an incoming REQUEST_UPDATE request.
int	imquic_moq_reject_request_update (imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t retry_interval)
	Function to reject an incoming REQUEST_UPDATE request.
int	imquic_moq_publish_done (imquic_connection *conn, uint64_t request_id, imquic_moq_pub_done_code status_code, const char *reason)
	Function to send a PUBLISH_DONE request.
int	imquic_moq_unsubscribe (imquic_connection *conn, uint64_t request_id)
	Function to send a UNSUBSCRIBE request.
int	imquic_moq_subscribe_namespace (imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns, imquic_moq_subscribe_namespace_options subscribe_options, imquic_moq_request_parameters *parameters)
	Function to send a SUBSCRIBE_NAMESPACE request.
int	imquic_moq_accept_subscribe_namespace (imquic_connection *conn, uint64_t request_id, imquic_moq_request_parameters *parameters)
	Function to accept an incoming SUBSCRIBE_NAMESPACE request.
int	imquic_moq_reject_subscribe_namespace (imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t retry_interval)
	Function to reject an incoming SUBSCRIBE_NAMESPACE request.
int	imquic_moq_unsubscribe_namespace (imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns)
	Function to send a UNSUBSCRIBE_NAMESPACE request.
int	imquic_moq_notify_namespace (imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns)
	Function to send a NAMESPACE request.
int	imquic_moq_notify_namespace_done (imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns)
	Function to send a NAMESPACE_DONE request.
int	imquic_moq_standalone_fetch (imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns, imquic_moq_name *tn, imquic_moq_location_range *range, imquic_moq_request_parameters *parameters)
	Function to send a standalone FETCH request.
int	imquic_moq_joining_fetch (imquic_connection *conn, uint64_t request_id, uint64_t joining_request_id, gboolean absolute, uint64_t joining_start, imquic_moq_request_parameters *parameters)
	Function to send a joining FETCH request.
int	imquic_moq_accept_fetch (imquic_connection *conn, uint64_t request_id, imquic_moq_location *largest, imquic_moq_request_parameters *parameters, GList *track_extensions)
	Function to accept an incoming FETCH request.
int	imquic_moq_reject_fetch (imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t retry_interval)
	Function to reject an incoming FETCH request.
int	imquic_moq_cancel_fetch (imquic_connection *conn, uint64_t request_id)
	Function to send a FETCH_CANCEL request.
int	imquic_moq_track_status (imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns, imquic_moq_name *tn, imquic_moq_request_parameters *parameters)
	Function to send a TRACK_STATUS request.
int	imquic_moq_accept_track_status (imquic_connection *conn, uint64_t request_id, uint64_t track_alias, imquic_moq_request_parameters *parameters)
	Function to accept an incoming TRACK_STATUS request.
int	imquic_moq_reject_track_status (imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t retry_interval)
	Function to reject an incoming TRACK_STATUS request.
int	imquic_moq_send_object (imquic_connection *conn, imquic_moq_object *object)
	Function to send a MoQ object.
int	imquic_moq_requests_blocked (imquic_connection *conn)
	Function to send a REQUESTS_BLOCKED request.
int	imquic_moq_goaway (imquic_connection *conn, const char *uri)
	Function to send a GOAWAY request.

MoQ resources
enum	imquic_moq_group_order { IMQUIC_MOQ_ORDERING_ORIGINAL = 0x0 , IMQUIC_MOQ_ORDERING_ASCENDING = 0x1 , IMQUIC_MOQ_ORDERING_DESCENDING = 0x2 }
	Group ordering for tracks. More...
enum	imquic_moq_filter_type { IMQUIC_MOQ_FILTER_NEXT_GROUP_START = 0x1 , IMQUIC_MOQ_FILTER_LARGEST_OBJECT = 0x2 , IMQUIC_MOQ_FILTER_ABSOLUTE_START = 0x3 , IMQUIC_MOQ_FILTER_ABSOLUTE_RANGE = 0x4 }
	MoQ filter type, for subscriptions. More...
enum	imquic_moq_subscribe_namespace_options { IMQUIC_MOQ_WANT_PUBLISH = 0x0 , IMQUIC_MOQ_WANT_NAMESPACE = 0x1 , IMQUIC_MOQ_WANT_PUBLISH_AND_NAMESPACE = 0x2 }
	Subscribe options for namespaces. More...
enum	imquic_moq_delivery { IMQUIC_MOQ_USE_DATAGRAM , IMQUIC_MOQ_USE_SUBGROUP , IMQUIC_MOQ_USE_FETCH }
	Ways of sending objects. More...
enum	imquic_moq_object_status { IMQUIC_MOQ_NORMAL_OBJECT = 0x0 , IMQUIC_MOQ_OBJECT_DOESNT_EXIST = 0x1 , IMQUIC_MOQ_END_OF_GROUP = 0x3 , IMQUIC_MOQ_END_OF_TRACK = 0x4 }
	MoQ Object status. More...
enum	imquic_moq_extension_type {   IMQUIC_MOQ_EXT_DELIVERY_TIMEOUT = 0x02 , IMQUIC_MOQ_EXT_MAX_CACHE_DURATION = 0x04 , IMQUIC_MOQ_EXT_DEFAULT_PUBLISHER_PRIORITY = 0x0E , IMQUIC_MOQ_EXT_DEFAULT_GROUP_ORDER = 0x22 ,   IMQUIC_MOQ_EXT_DYNAMIC_GROUPS = 0x30 , IMQUIC_MOQ_EXT_PRIOR_GROUP_ID_GAP = 0x3C , IMQUIC_MOQ_EXT_PRIOR_OBJECT_ID_GAP = 0x3E , IMQUIC_MOQ_EXT_IMMUTABLE_EXTENSIONS = 0xB }
	Known MoQ Object Extension header types. More...
typedef struct imquic_moq_namespace	imquic_moq_namespace
	MoQ Track Namespace.
typedef struct imquic_moq_name	imquic_moq_name
	MoQ Track Name.
typedef enum imquic_moq_group_order	imquic_moq_group_order
	Group ordering for tracks.
typedef enum imquic_moq_filter_type	imquic_moq_filter_type
	MoQ filter type, for subscriptions.
typedef struct imquic_moq_location	imquic_moq_location
	MoQ Group/Object couple (for ranges)
typedef struct imquic_moq_location_range	imquic_moq_location_range
	MoQ location range (from where to where, e.g., for FETCH)
typedef struct imquic_moq_subscription_filter	imquic_moq_subscription_filter
	MoQ subscription filter.
typedef enum imquic_moq_subscribe_namespace_options	imquic_moq_subscribe_namespace_options
	Subscribe options for namespaces.
typedef struct imquic_moq_request_parameters	imquic_moq_request_parameters
	MoQ request parameters.
typedef enum imquic_moq_delivery	imquic_moq_delivery
	Ways of sending objects.
typedef enum imquic_moq_object_status	imquic_moq_object_status
	MoQ Object status.
typedef struct imquic_moq_object_extension	imquic_moq_object_extension
	MoQ Object Extension.
typedef enum imquic_moq_extension_type	imquic_moq_extension_type
	Known MoQ Object Extension header types.
typedef struct imquic_moq_object	imquic_moq_object
	MoQ Object.
const char *	imquic_moq_namespace_str (imquic_moq_namespace *tns, char *buffer, size_t blen, gboolean tuple)
	Helper to stringify a namespace (optionally the whole tuple)
gboolean	imquic_moq_namespace_equals (imquic_moq_namespace *first, imquic_moq_namespace *second)
	Helper to check whether two namespaces are the sames.
gboolean	imquic_moq_namespace_contains (imquic_moq_namespace *parent, imquic_moq_namespace *child)
	Helper to check whether a namespace is contained in another.
imquic_moq_namespace *	imquic_moq_namespace_duplicate (imquic_moq_namespace *tns)
	Helper to duplicate a namespace.
void	imquic_moq_namespace_free (imquic_moq_namespace *tns)
	Helper to free a imquic_moq_namespace instance.
const char *	imquic_moq_track_str (imquic_moq_name *tn, char *buffer, size_t blen)
gboolean	imquic_moq_name_equals (imquic_moq_name *first, imquic_moq_name *second)
	Helper to check whether two track names are the sames.
const char *	imquic_moq_group_order_str (imquic_moq_group_order type)
	Helper function to serialize to string the name of a imquic_moq_group_order value.
const char *	imquic_moq_filter_type_str (imquic_moq_filter_type type)
	Helper function to serialize to string the name of a imquic_moq_filter_type value.
const char *	imquic_moq_subscribe_namespace_options_str (imquic_moq_subscribe_namespace_options type)
	Helper function to serialize to string the name of a imquic_moq_subscribe_namespace_options value.
void	imquic_moq_request_parameters_init_defaults (imquic_moq_request_parameters *parameters)
	Helper method to initialize some defaults values (where applicable) for the supported parameters.
const char *	imquic_moq_delivery_str (imquic_moq_delivery type)
	Helper function to serialize to string the name of a imquic_moq_delivery property.
const char *	imquic_moq_object_status_str (imquic_moq_object_status status)
	Helper function to serialize to string the name of a imquic_moq_object_status property.
const char *	imquic_moq_extension_type_str (imquic_moq_extension_type type)
	Helper function to serialize to string the name of a imquic_moq_extension_type value.

MoQ error and status codes
enum	imquic_moq_error_code {   IMQUIC_MOQ_NO_ERROR = 0x0 , IMQUIC_MOQ_INTERNAL_ERROR = 0x1 , IMQUIC_MOQ_UNAUTHORIZED = 0x2 , IMQUIC_MOQ_PROTOCOL_VIOLATION = 0x3 ,   IMQUIC_MOQ_INVALID_REQUEST_ID = 0x4 , IMQUIC_MOQ_DUPLICATE_TRACK_ALIAS = 0x5 , IMQUIC_MOQ_KEYVALUE_FORMATTING_ERROR = 0x6 , IMQUIC_MOQ_TOO_MANY_REQUESTS = 0x7 ,   IMQUIC_MOQ_INVALID_PATH = 0x8 , IMQUIC_MOQ_MALFORMED_PATH = 0x9 , IMQUIC_MOQ_GOAWAY_TIMEOUT = 0x10 , IMQUIC_MOQ_CONTROL_MESSAGE_TIMEOUT = 0x11 ,   IMQUIC_MOQ_DATA_STREAM_TIMEOUT = 0x12 , IMQUIC_MOQ_AUTH_TOKEN_CACHE_OVERFLOW = 0x13 , IMQUIC_MOQ_DUPLICATE_AUTH_TOKEN_ALIAS = 0x14 , IMQUIC_MOQ_VERSION_NEGOTIATION_FAILED = 0x15 ,   IMQUIC_MOQ_MALFORMED_AUTH_TOKEN = 0x16 , IMQUIC_MOQ_UNKNOWN_AUTH_TOKEN_ALIAS = 0x17 , IMQUIC_MOQ_EXPIRED_AUTH_TOKEN = 0x18 , IMQUIC_MOQ_INVALID_AUTHORITY = 0x19 ,   IMQUIC_MOQ_MALFORMED_AUTHORITY = 0x1A , IMQUIC_MOQ_UNKNOWN_ERROR = 0xFF }
	Generic error codes. More...
enum	imquic_moq_request_error_code {   IMQUIC_MOQ_REQERR_INTERNAL_ERROR = 0x0 , IMQUIC_MOQ_REQERR_UNAUTHORIZED = 0x1 , IMQUIC_MOQ_REQERR_TIMEOUT = 0x2 , IMQUIC_MOQ_REQERR_NOT_SUPPORTED = 0x3 ,   IMQUIC_MOQ_REQERR_MALFORMED_AUTH_TOKEN = 0x4 , IMQUIC_MOQ_REQERR_EXPIRED_AUTH_TOKEN = 0x5 , IMQUIC_MOQ_REQERR_DOES_NOT_EXIST = 0x10 , IMQUIC_MOQ_REQERR_INVALID_RANGE = 0x11 ,   IMQUIC_MOQ_REQERR_MALFORMED_TRACK = 0x12 , IMQUIC_MOQ_REQERR_DUPLICATE_SUBSCRIPTION = 0x19 , IMQUIC_MOQ_REQERR_UNINTERESTED = 0x20 , IMQUIC_MOQ_REQERR_PREFIX_OVERLAP = 0x30 ,   IMQUIC_MOQ_REQERR_INVALID_JOINING_REQUEST_ID = 0x32 , IMQUIC_MOQ_REQERR_UNKNOWN_STATUS_IN_RANGE = 0x33 }
	Request error codes. More...
enum	imquic_moq_pub_done_code {   IMQUIC_MOQ_PUBDONE_INTERNAL_ERROR = 0x0 , IMQUIC_MOQ_PUBDONE_UNAUTHORIZED = 0x1 , IMQUIC_MOQ_PUBDONE_TRACK_ENDED = 0x2 , IMQUIC_MOQ_PUBDONE_SUBSCRIPTION_ENDED = 0x3 ,   IMQUIC_MOQ_PUBDONE_GOING_AWAY = 0x4 , IMQUIC_MOQ_PUBDONE_EXPIRED = 0x5 , IMQUIC_MOQ_PUBDONE_TOO_FAR_BEHIND = 0x6 , IMQUIC_MOQ_PUBDONE_MALFORMED_TRACK = 0x12 ,   IMQUIC_MOQ_PUBDONE_UPDATE_FAILED = 0x8 }
	Publish done codes. More...
enum	imquic_moq_reset_stream_code {   IMQUIC_MOQ_RESET_INTERNAL_ERROR = 0x0 , IMQUIC_MOQ_RESET_CANCELLED = 0x1 , IMQUIC_MOQ_RESET_DELIVERY_TIMEOUT = 0x2 , IMQUIC_MOQ_RESET_SESSION_CLOSED = 0x3 ,   IMQUIC_MOQ_RESET_UNKNOWN_OBJECT_STATUS = 0x4 , IMQUIC_MOQ_RESET_MALFORMED_TRACK = 0x12 }
	RESET_STREAM error codes. More...
typedef enum imquic_moq_error_code	imquic_moq_error_code
	Generic error codes.
typedef enum imquic_moq_request_error_code	imquic_moq_request_error_code
	Request error codes.
typedef enum imquic_moq_pub_done_code	imquic_moq_pub_done_code
	Publish done codes.
typedef enum imquic_moq_reset_stream_code	imquic_moq_reset_stream_code
	RESET_STREAM error codes.
const char *	imquic_moq_error_code_str (imquic_moq_error_code code)
	Helper function to serialize to string the name of a imquic_moq_error_code value.
const char *	imquic_moq_request_error_code_str (imquic_moq_request_error_code code)
	Helper function to serialize to string the name of a imquic_moq_request_error_code value.
const char *	imquic_moq_pub_done_code_str (imquic_moq_pub_done_code code)
	Helper function to serialize to string the name of a imquic_moq_pub_done_code value.
const char *	imquic_moq_reset_stream_code_str (imquic_moq_reset_stream_code code)
	Helper function to serialize to string the name of a imquic_moq_reset_stream_code value.

Detailed Description

imquic MoQ public interface (headers)

Author

Lorenzo Miniero loren.nosp@m.zo@m.nosp@m.eetec.nosp@m.ho.c.nosp@m.om

Copyright

MIT License

Public interface to the Media Over QUIC (MoQ) native support in the imquic library. This is where public functions are callbacks to interact with the MoQ features of the library are defined.

Typedef Documentation

imquic_moq_auth_token

typedef struct imquic_moq_auth_token imquic_moq_auth_token

MoQ Authorization Token.

imquic_moq_auth_token_alias_type

typedef enum imquic_moq_auth_token_alias_type imquic_moq_auth_token_alias_type

MoQ Authorization Token Alias Type.

imquic_moq_delivery

typedef enum imquic_moq_delivery imquic_moq_delivery

Ways of sending objects.

imquic_moq_error_code

typedef enum imquic_moq_error_code imquic_moq_error_code

Generic error codes.

imquic_moq_extension_type

typedef enum imquic_moq_extension_type imquic_moq_extension_type

Known MoQ Object Extension header types.

Note

The library will not try to interpret extensions and their payload: this is always left up to applications

imquic_moq_filter_type

typedef enum imquic_moq_filter_type imquic_moq_filter_type

MoQ filter type, for subscriptions.

imquic_moq_group_order

typedef enum imquic_moq_group_order imquic_moq_group_order

Group ordering for tracks.

imquic_moq_location

typedef struct imquic_moq_location imquic_moq_location

MoQ Group/Object couple (for ranges)

imquic_moq_location_range

typedef struct imquic_moq_location_range imquic_moq_location_range

MoQ location range (from where to where, e.g., for FETCH)

imquic_moq_name

typedef struct imquic_moq_name imquic_moq_name

MoQ Track Name.

imquic_moq_namespace

typedef struct imquic_moq_namespace imquic_moq_namespace

MoQ Track Namespace.

imquic_moq_object

typedef struct imquic_moq_object imquic_moq_object

MoQ Object.

Note

This may contain info related to different MoQ versions, and so should be considered a higher level abstraction that the internal MoQ stack may (and often will) use and notify differently

imquic_moq_object_extension

typedef struct imquic_moq_object_extension imquic_moq_object_extension

MoQ Object Extension.

Note

This may contain info related to different MoQ versions, and so should be considered a higher level abstraction that the internal MoQ stack may (and often will) use and notify differently

imquic_moq_object_status

typedef enum imquic_moq_object_status imquic_moq_object_status

MoQ Object status.

imquic_moq_pub_done_code

typedef enum imquic_moq_pub_done_code imquic_moq_pub_done_code

Publish done codes.

imquic_moq_request_error_code

typedef enum imquic_moq_request_error_code imquic_moq_request_error_code

Request error codes.

imquic_moq_request_parameters

typedef struct imquic_moq_request_parameters imquic_moq_request_parameters

MoQ request parameters.

Note

This struct is used in the MoQ API signatures even when the negotiated version of MoQ is lower than v15, that is when most of the properties below were fields in the messages themselves, rather than parameters as they are now. The library takes care of the serialization/deserialization process automatically, so you can refer to this struct from an application perspective, and the library will take care of the rest. Notice that not all of these parameters are supported in all MoQ requests and responses, which means that the library will silently ignore parameters that are not supposed to be there in case.

imquic_moq_reset_stream_code

typedef enum imquic_moq_reset_stream_code imquic_moq_reset_stream_code

RESET_STREAM error codes.

imquic_moq_subscribe_namespace_options

typedef enum imquic_moq_subscribe_namespace_options imquic_moq_subscribe_namespace_options

Subscribe options for namespaces.

Note

Only supported since version -16 of the protocol

imquic_moq_subscription_filter

typedef struct imquic_moq_subscription_filter imquic_moq_subscription_filter

MoQ subscription filter.

imquic_moq_version

typedef enum imquic_moq_version imquic_moq_version

Versions that can be negotiated.

Enumeration Type Documentation

imquic_moq_auth_token_alias_type

enum imquic_moq_auth_token_alias_type

MoQ Authorization Token Alias Type.

Enumerator
IMQUIC_MOQ_AUTH_TOKEN_DELETE	DELETE.
IMQUIC_MOQ_AUTH_TOKEN_REGISTER	REGISTER.
IMQUIC_MOQ_AUTH_TOKEN_USE_ALIAS	USE_ALIAS.
IMQUIC_MOQ_AUTH_TOKEN_USE_VALUE	USE_VALUE.

imquic_moq_delivery

enum imquic_moq_delivery

Ways of sending objects.

Enumerator
IMQUIC_MOQ_USE_DATAGRAM	A single object on a DATAGRAM.
IMQUIC_MOQ_USE_SUBGROUP	All objects of the same subgroup on the same STREAM.
IMQUIC_MOQ_USE_FETCH	All fetched objects on the same STREAM.

imquic_moq_error_code

enum imquic_moq_error_code

Generic error codes.

Enumerator
IMQUIC_MOQ_NO_ERROR
IMQUIC_MOQ_INTERNAL_ERROR
IMQUIC_MOQ_UNAUTHORIZED
IMQUIC_MOQ_PROTOCOL_VIOLATION
IMQUIC_MOQ_INVALID_REQUEST_ID
IMQUIC_MOQ_DUPLICATE_TRACK_ALIAS
IMQUIC_MOQ_KEYVALUE_FORMATTING_ERROR
IMQUIC_MOQ_TOO_MANY_REQUESTS
IMQUIC_MOQ_INVALID_PATH
IMQUIC_MOQ_MALFORMED_PATH
IMQUIC_MOQ_GOAWAY_TIMEOUT
IMQUIC_MOQ_CONTROL_MESSAGE_TIMEOUT
IMQUIC_MOQ_DATA_STREAM_TIMEOUT
IMQUIC_MOQ_AUTH_TOKEN_CACHE_OVERFLOW
IMQUIC_MOQ_DUPLICATE_AUTH_TOKEN_ALIAS
IMQUIC_MOQ_VERSION_NEGOTIATION_FAILED
IMQUIC_MOQ_MALFORMED_AUTH_TOKEN
IMQUIC_MOQ_UNKNOWN_AUTH_TOKEN_ALIAS
IMQUIC_MOQ_EXPIRED_AUTH_TOKEN
IMQUIC_MOQ_INVALID_AUTHORITY
IMQUIC_MOQ_MALFORMED_AUTHORITY
IMQUIC_MOQ_UNKNOWN_ERROR

imquic_moq_extension_type

enum imquic_moq_extension_type

Known MoQ Object Extension header types.

Note

The library will not try to interpret extensions and their payload: this is always left up to applications

Enumerator
IMQUIC_MOQ_EXT_DELIVERY_TIMEOUT
IMQUIC_MOQ_EXT_MAX_CACHE_DURATION
IMQUIC_MOQ_EXT_DEFAULT_PUBLISHER_PRIORITY
IMQUIC_MOQ_EXT_DEFAULT_GROUP_ORDER
IMQUIC_MOQ_EXT_DYNAMIC_GROUPS
IMQUIC_MOQ_EXT_PRIOR_GROUP_ID_GAP
IMQUIC_MOQ_EXT_PRIOR_OBJECT_ID_GAP
IMQUIC_MOQ_EXT_IMMUTABLE_EXTENSIONS

imquic_moq_filter_type

enum imquic_moq_filter_type

MoQ filter type, for subscriptions.

Enumerator
IMQUIC_MOQ_FILTER_NEXT_GROUP_START
IMQUIC_MOQ_FILTER_LARGEST_OBJECT
IMQUIC_MOQ_FILTER_ABSOLUTE_START
IMQUIC_MOQ_FILTER_ABSOLUTE_RANGE

imquic_moq_group_order

enum imquic_moq_group_order

Group ordering for tracks.

Enumerator
IMQUIC_MOQ_ORDERING_ORIGINAL
IMQUIC_MOQ_ORDERING_ASCENDING
IMQUIC_MOQ_ORDERING_DESCENDING

imquic_moq_object_status

enum imquic_moq_object_status

MoQ Object status.

Enumerator
IMQUIC_MOQ_NORMAL_OBJECT	Normal object.
IMQUIC_MOQ_OBJECT_DOESNT_EXIST	Object doesn't exist (deprecated in v16)
IMQUIC_MOQ_END_OF_GROUP	End of group.
IMQUIC_MOQ_END_OF_TRACK	End of track.

imquic_moq_pub_done_code

enum imquic_moq_pub_done_code

Publish done codes.

Enumerator
IMQUIC_MOQ_PUBDONE_INTERNAL_ERROR
IMQUIC_MOQ_PUBDONE_UNAUTHORIZED
IMQUIC_MOQ_PUBDONE_TRACK_ENDED
IMQUIC_MOQ_PUBDONE_SUBSCRIPTION_ENDED
IMQUIC_MOQ_PUBDONE_GOING_AWAY
IMQUIC_MOQ_PUBDONE_EXPIRED
IMQUIC_MOQ_PUBDONE_TOO_FAR_BEHIND
IMQUIC_MOQ_PUBDONE_MALFORMED_TRACK
IMQUIC_MOQ_PUBDONE_UPDATE_FAILED

imquic_moq_request_error_code

enum imquic_moq_request_error_code

Request error codes.

Enumerator
IMQUIC_MOQ_REQERR_INTERNAL_ERROR
IMQUIC_MOQ_REQERR_UNAUTHORIZED
IMQUIC_MOQ_REQERR_TIMEOUT
IMQUIC_MOQ_REQERR_NOT_SUPPORTED
IMQUIC_MOQ_REQERR_MALFORMED_AUTH_TOKEN
IMQUIC_MOQ_REQERR_EXPIRED_AUTH_TOKEN
IMQUIC_MOQ_REQERR_DOES_NOT_EXIST
IMQUIC_MOQ_REQERR_INVALID_RANGE
IMQUIC_MOQ_REQERR_MALFORMED_TRACK
IMQUIC_MOQ_REQERR_DUPLICATE_SUBSCRIPTION
IMQUIC_MOQ_REQERR_UNINTERESTED
IMQUIC_MOQ_REQERR_PREFIX_OVERLAP
IMQUIC_MOQ_REQERR_INVALID_JOINING_REQUEST_ID
IMQUIC_MOQ_REQERR_UNKNOWN_STATUS_IN_RANGE

imquic_moq_reset_stream_code

enum imquic_moq_reset_stream_code

RESET_STREAM error codes.

Enumerator
IMQUIC_MOQ_RESET_INTERNAL_ERROR
IMQUIC_MOQ_RESET_CANCELLED
IMQUIC_MOQ_RESET_DELIVERY_TIMEOUT
IMQUIC_MOQ_RESET_SESSION_CLOSED
IMQUIC_MOQ_RESET_UNKNOWN_OBJECT_STATUS
IMQUIC_MOQ_RESET_MALFORMED_TRACK

imquic_moq_subscribe_namespace_options

enum imquic_moq_subscribe_namespace_options

Subscribe options for namespaces.

Note

Only supported since version -16 of the protocol

Enumerator
IMQUIC_MOQ_WANT_PUBLISH
IMQUIC_MOQ_WANT_NAMESPACE
IMQUIC_MOQ_WANT_PUBLISH_AND_NAMESPACE

imquic_moq_version

enum imquic_moq_version

Versions that can be negotiated.

Enumerator
IMQUIC_MOQ_VERSION_BASE
IMQUIC_MOQ_VERSION_MIN
IMQUIC_MOQ_VERSION_11
IMQUIC_MOQ_VERSION_12
IMQUIC_MOQ_VERSION_13
IMQUIC_MOQ_VERSION_14
IMQUIC_MOQ_VERSION_15
IMQUIC_MOQ_VERSION_16
IMQUIC_MOQ_VERSION_MAX
IMQUIC_MOQ_VERSION_ANY
IMQUIC_MOQ_VERSION_ANY_LEGACY

Function Documentation

imquic_create_moq_client()

imquic_client * imquic_create_moq_client	(	const char *	name,
			... )

Method to create a new MoQ client, using variable arguments to dictate what the client should do (e.g., address to connect to, ALPN, etc.). Variable arguments are in the form of a sequence of name-value started with a IMQUIC_CONFIG_INIT and ended by a IMQUIC_CONFIG_DONE , e.g.:

       imquic_server *client = imquic_create_moq_client("moq-sub",
        IMQUIC_CONFIG_INIT,
        IMQUIC_CONFIG_TLS_CERT, cert_pem,
        IMQUIC_CONFIG_TLS_KEY, cert_key,
        IMQUIC_CONFIG_TLS_PASSWORD, cert_pwd,
        IMQUIC_CONFIG_REMOTE_HOST, "127.0.0.1",
        IMQUIC_CONFIG_REMOTE_PORT, 9000,
        IMQUIC_CONFIG_WEBTRANSPORT, TRUE,
        IMQUIC_CONFIG_MOQ_VERSION, IMQUIC_MOQ_VERSION_16,
        IMQUIC_CONFIG_HTTP3_PATH, "/moq",
        IMQUIC_CONFIG_DONE, NULL);

to create a QUIC client that will automatically negotiate MoQ over WebTransport. Notice that this only specifies the QUIC role (client), not what role the application will have with respect to MoQ. Again, notice that, axacrlt as with imquic_create_client, this will only create the resource, but not actually start the connection: before doing that, you'll need to configure the callbacks for the events you're interested in (in this case, MoQ specific), and then use imquic_start_endpoint to start the QUIC client (which will attempt a connection).

Note

This will create a full, internal, MoQ stack on top of imquic, meaning that the MoQ Transport protocol will be handled natively by imquic for you, providing a high level interface to the features of the protocol itself. If you want to only use imquic as a QUIC/WebTrasport protocol, and implement MoQ yourself, then you'll need to use imquic_create_server or imquic_create_client instead.

Parameters

[in]

name

The endpoint name (if NULL, a default value will be set)

Returns

A pointer to a imquic_client object, if successful, NULL otherwise

imquic_create_moq_server()

imquic_server * imquic_create_moq_server	(	const char *	name,
			... )

Method to create a new MoQ server, using variable arguments to dictate what the server should do (e.g., port to bind to, ALPN, etc.). Variable arguments are in the form of a sequence of name-value started with a IMQUIC_CONFIG_INIT and ended by a IMQUIC_CONFIG_DONE , e.g.:

       imquic_server *server = imquic_create_moq_server("moq-relay",
        IMQUIC_CONFIG_INIT,
        IMQUIC_CONFIG_TLS_CERT, cert_pem,
        IMQUIC_CONFIG_TLS_KEY, cert_key,
        IMQUIC_CONFIG_TLS_PASSWORD, cert_pwd,
        IMQUIC_CONFIG_LOCAL_PORT, 9000,
        IMQUIC_CONFIG_WEBTRANSPORT, TRUE,
        IMQUIC_CONFIG_MOQ_VERSION, IMQUIC_MOQ_VERSION_16,
        IMQUIC_CONFIG_DONE, NULL);

to create a QUIC server that will automatically negotiate MoQ over WebTransport. Notice that this only specifies the QUIC role (server), not what role the application will have with respect to MoQ. Againn notice that, exactly as with imquic_create_server, this will only create the resource, but not actually start the server: before doing that, you'll need to configure the callbacks for the events you're interested in (in this case, MoQ specific), and then use imquic_start_endpoint to start the QUIC server (which will wait for incoming connections).

Note

This will create a full, internal, MoQ stack on top of imquic, meaning that the MoQ Transport protocol will be handled natively by imquic for you, providing a high level interface to the features of the protocol itself. If you want to only use imquic as a QUIC/WebTrasport protocol, and implement MoQ yourself, then you'll need to use imquic_create_server or imquic_create_client instead.

Parameters

[in]

name

The endpoint name (if NULL, a default value will be set)

Returns

A pointer to a imquic_server object, if successful, NULL otherwise

imquic_moq_accept_fetch()

int imquic_moq_accept_fetch	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_location *	largest,
		imquic_moq_request_parameters *	parameters,
		GList *	track_extensions )

Function to accept an incoming FETCH request.

Parameters

conn	The imquic_connection to send the request on
request_id	The unique request_id value associated to the subscription to accept
largest	The largest group/object IDs
parameters	The parameters to add to the request
track_extensions	List of track extensions to add, if any (added in v16)

Returns

0 in case of success, a negative integer otherwise

imquic_moq_accept_publish()

int imquic_moq_accept_publish	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_request_parameters *	parameters )

Function to accept an incoming PUBLISH request.

Parameters

conn	The imquic_connection to send the request on
request_id	The unique request_id value associated to the subscription to accept
parameters	The parameters to add to the request

Returns

0 in case of success, a negative integer otherwise

imquic_moq_accept_publish_namespace()

int imquic_moq_accept_publish_namespace	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_request_parameters *	parameters )

Function to accept an incoming PUBLISH_NAMESPACE request.

Parameters

conn	The imquic_connection to send the request on
request_id	The request ID of the original PUBLISH_NAMESPACE request
parameters	The parameters to add to the request (ignored before v15)

Returns

0 in case of success, a negative integer otherwise

imquic_moq_accept_request_update()

int imquic_moq_accept_request_update	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_request_parameters *	parameters )

Function to accept an incoming REQUEST_UPDATE request.

Note

This acknowledgement was only added in v15, which means it will be a no-action if you try to send it when negotiating an older version

Parameters

conn	The imquic_connection to send the request on
request_id	The request ID of the original REQUEST_UPDATE request
parameters	The parameters to add to the request

Returns

0 in case of success, a negative integer otherwise

imquic_moq_accept_subscribe()

int imquic_moq_accept_subscribe	(	imquic_connection *	conn,
		uint64_t	request_id,
		uint64_t	track_alias,
		imquic_moq_request_parameters *	parameters,
		GList *	track_extensions )

Function to accept an incoming SUBSCRIBE request.

Parameters

conn	The imquic_connection to send the request on
request_id	The unique request_id value associated to the subscription to accept
track_alias	The unique track_alias value associated to the subscription to accept (ignored before v12)
parameters	The parameters to add to the request
track_extensions	List of track extensions to add, if any (added in v16)

Returns

0 in case of success, a negative integer otherwise

imquic_moq_accept_subscribe_namespace()

int imquic_moq_accept_subscribe_namespace	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_request_parameters *	parameters )

Function to accept an incoming SUBSCRIBE_NAMESPACE request.

Parameters

conn	The imquic_connection to send the request on
request_id	The request ID of the original SUBSCRIBE_NAMESPACE request
parameters	The parameters to add to the request (ignored before v15)

Returns

0 in case of success, a negative integer otherwise

imquic_moq_accept_track_status()

int imquic_moq_accept_track_status	(	imquic_connection *	conn,
		uint64_t	request_id,
		uint64_t	track_alias,
		imquic_moq_request_parameters *	parameters )

Function to accept an incoming TRACK_STATUS request.

Note

Due to considerable changes between v12 and v13 on TRACK_STATUS , support for this request is disabled in versions earlier than v13.

Parameters

conn	The imquic_connection to send the request on
request_id	The unique request_id value associated to the subscription to query
track_alias	The unique track_alias value associated to the subscription to query (ignored after v15)
parameters	The parameters to add to the request

Returns

0 in case of success, a negative integer otherwise

imquic_moq_auth_token_alias_type_str()

const char * imquic_moq_auth_token_alias_type_str

(

imquic_moq_auth_token_alias_type

type

)

Helper function to serialize to string the name of a imquic_moq_auth_token_alias_type property.

Parameters

type	The imquic_moq_auth_token_alias_type property

Returns

The type name as a string, if valid, or NULL otherwise

imquic_moq_build_auth_token()

size_t imquic_moq_build_auth_token	(	imquic_moq_auth_token *	token,
		uint8_t *	bytes,
		size_t	blen )

Helper mode to craft an auth token buffer out of a imquic_moq_auth_token instance.

Parameters

[in]	token	The imquic_moq_auth_token instance to serialize
[out]	bytes	The buffer to write the auth token to
[in]	blen	The size of the buffer to write to

Returns

How many bytes were written, if successful

imquic_moq_cancel_fetch()

int imquic_moq_cancel_fetch	(	imquic_connection *	conn,
		uint64_t	request_id )

Function to send a FETCH_CANCEL request.

Parameters

conn	The imquic_connection to send the request on
request_id	The unique request_id value associated to the subscription to cancel_fetch from

Returns

0 in case of success, a negative integer otherwise

imquic_moq_delivery_str()

const char * imquic_moq_delivery_str

(

imquic_moq_delivery

type

)

Helper function to serialize to string the name of a imquic_moq_delivery property.

Parameters

type	The imquic_moq_delivery property

Returns

The type name as a string, if valid, or NULL otherwise

imquic_moq_error_code_str()

const char * imquic_moq_error_code_str

(

imquic_moq_error_code

code

)

Helper function to serialize to string the name of a imquic_moq_error_code value.

Parameters

code	The imquic_moq_error_code value

Returns

The type name as a string, if valid, or NULL otherwise

imquic_moq_extension_type_str()

const char * imquic_moq_extension_type_str

(

imquic_moq_extension_type

type

)

Helper function to serialize to string the name of a imquic_moq_extension_type value.

Parameters

type	The imquic_moq_extension_type value

Returns

The type name as a string, if valid, or NULL otherwise

imquic_moq_filter_type_str()

const char * imquic_moq_filter_type_str

(

imquic_moq_filter_type

type

)

Helper function to serialize to string the name of a imquic_moq_filter_type value.

Parameters

type	The imquic_moq_filter_type value

Returns

The type name as a string, if valid, or NULL otherwise

imquic_moq_get_next_request_id()

uint64_t imquic_moq_get_next_request_id

(

imquic_connection *

conn

)

Helper function to get the next Request ID we can use.

Parameters

conn	The imquic_connection to query

Returns

The next Request ID

imquic_moq_get_remote_implementation()

const char * imquic_moq_get_remote_implementation

(

imquic_connection *

conn

)

Helper function to return the MoQ implementation name as a string, if provided by the peer of this connection.

Note

The string is owned by the library, so if you'll need to rely on it externally in your application, you should duplicate it yourself

Parameters

conn	The imquic_connection to query

Returns

The name of the MoQ implementation, if available, or NULL otherwise

imquic_moq_get_version()

imquic_moq_version imquic_moq_get_version

(

imquic_connection *

conn

)

Helper function to get the MoQ version associated with a connection.

Parameters

conn	The imquic_connection to query

Returns

The imquic_moq_version value

imquic_moq_goaway()

int imquic_moq_goaway	(	imquic_connection *	conn,
		const char *	uri )

Function to send a GOAWAY request.

Parameters

conn	The imquic_connection to send the request on
uri	Where the client can connect to continue the session

Returns

0 in case of success, a negative integer otherwise

imquic_moq_group_order_str()

const char * imquic_moq_group_order_str

(

imquic_moq_group_order

type

)

Helper function to serialize to string the name of a imquic_moq_group_order value.

Parameters

type	The imquic_moq_group_order value

Returns

The type name as a string, if valid, or NULL otherwise

imquic_moq_joining_fetch()

int imquic_moq_joining_fetch	(	imquic_connection *	conn,
		uint64_t	request_id,
		uint64_t	joining_request_id,
		gboolean	absolute,
		uint64_t	joining_start,
		imquic_moq_request_parameters *	parameters )

Function to send a joining FETCH request.

Parameters

conn	The imquic_connection to send the request on
request_id	A unique numeric identifier to associate to this subscription
joining_request_id	Existing subscription to join
absolute	Whether this is an absolute or relative joining FETCH
joining_start	How many groups to retrieve before the current one, for relative joins, or starting group ID for absolute joins
parameters	The parameters to add to the request

Returns

0 in case of success, a negative integer otherwise

imquic_moq_name_equals()

gboolean imquic_moq_name_equals	(	imquic_moq_name *	first,
		imquic_moq_name *	second )

Helper to check whether two track names are the sames.

Parameters

first	The first track name to check
second	The second track name to check

Returns

TRUE if the second track name is part of the secondm, FALSE otherwise

imquic_moq_namespace_contains()

gboolean imquic_moq_namespace_contains	(	imquic_moq_namespace *	parent,
		imquic_moq_namespace *	child )

Helper to check whether a namespace is contained in another.

Parameters

parent	The namespace parent to check
child	The namespace child to check

Returns

TRUE if the child namespace is part of the parent, FALSE otherwise

imquic_moq_namespace_duplicate()

imquic_moq_namespace * imquic_moq_namespace_duplicate

(

imquic_moq_namespace *

tns

)

Helper to duplicate a namespace.

Note

This will allocate a new buffer, that must be freed with imquic_moq_namespace

Parameters

tns	The namespace to duplicate

Returns

A pointer to a new imquic_moq_namespace, if successful, NULL otherwise

imquic_moq_namespace_equals()

gboolean imquic_moq_namespace_equals	(	imquic_moq_namespace *	first,
		imquic_moq_namespace *	second )

Helper to check whether two namespaces are the sames.

Parameters

first	The first namespace to check
second	The second namespace to check

Returns

TRUE if the first namespace is equal to the second, FALSE otherwise

imquic_moq_namespace_free()

void imquic_moq_namespace_free

(

imquic_moq_namespace *

tns

)

Helper to free a imquic_moq_namespace instance.

Note

This should only be used if everything in the namespace, including buffers, were allocated, e.g., via a call to imquic_moq_namespace_duplicate

Parameters

tns	The namespace to free

imquic_moq_namespace_str()

const char * imquic_moq_namespace_str	(	imquic_moq_namespace *	tns,
		char *	buffer,
		size_t	blen,
		gboolean	tuple )

Helper to stringify a namespace (optionally the whole tuple)

Note

If tuple is FALSE, the next property of the namespace is ignored, otherwise a single string is built for the whole tuple, using a slash character as a separator.

Parameters

[in]	tns	The namespace (or the start of a namespace tuple) to stringify
[out]	buffer	The buffer to write the string to
[in]	blen	The size of the output buffer
[in]	tuple	Whether the whole tuple should be stringified, or only the specific namespace

Returns

A pointer to the output buffer, if successful, or NULL otherwise

imquic_moq_notify_namespace()

int imquic_moq_notify_namespace	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_namespace *	tns )

Function to send a NAMESPACE request.

Note

This was added in v16, and while the request itself doesn't contain the request ID, we use it to find the subscription and use the right STREAM Notice the method expects the full track namespace: the stack will strip the prefix itself, before sending the actual message.

Parameters

conn	The imquic_connection to send the request on
request_id	The request ID of the original SUBSCRIBE_NAMESPACE request
tns	The imquic_moq_namespace namespace this request refers to

Returns

0 in case of success, a negative integer otherwise

imquic_moq_notify_namespace_done()

int imquic_moq_notify_namespace_done	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_namespace *	tns )

Function to send a NAMESPACE_DONE request.

Note

This was added in v16, and while the request itself doesn't contain the request ID, we use it to find the subscription and use the right STREAM. Notice the method expects the full track namespace: the stack will strip the prefix itself, before sending the actual message.

Parameters

conn	The imquic_connection to send the request on
request_id	The request ID of the original SUBSCRIBE_NAMESPACE request
tns	The imquic_moq_namespace namespace this request refers to

Returns

0 in case of success, a negative integer otherwise

imquic_moq_object_status_str()

const char * imquic_moq_object_status_str

(

imquic_moq_object_status

status

)

Helper function to serialize to string the name of a imquic_moq_object_status property.

Parameters

status

The imquic_moq_object_status property

Returns

The type name as a string, if valid, or NULL otherwise

imquic_moq_parse_auth_token()

int imquic_moq_parse_auth_token	(	uint8_t *	bytes,
		size_t	blen,
		imquic_moq_auth_token *	token )

Helper mode to parse an auth token buffer to a imquic_moq_auth_token instance.

Note

The buffer in the value property will point to data in the original bytes buffer, which means that no allocation will be performed by this method. If you need to store the token value somewhere, it's up to you to copy it before bytes is invalidated by the application

Parameters

[in]	bytes	The buffer containing the auth token data
[in]	blen	The size of the buffer containing the auth token data data
[out]	token	The imquic_moq_auth_token to put the parsed token info to

Returns

0 in case of success, or a negative integer otherwise

imquic_moq_pub_done_code_str()

const char * imquic_moq_pub_done_code_str

(

imquic_moq_pub_done_code

code

)

Helper function to serialize to string the name of a imquic_moq_pub_done_code value.

Parameters

code	The imquic_moq_pub_done_code value

Returns

The type name as a string, if valid, or NULL otherwise

imquic_moq_publish()

int imquic_moq_publish	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_namespace *	tns,
		imquic_moq_name *	tn,
		uint64_t	track_alias,
		imquic_moq_request_parameters *	parameters,
		GList *	track_extensions )

Function to send a PUBLISH request.

Parameters

conn	The imquic_connection to send the request on
request_id	A unique request ID to associate to this subscription
tns	The imquic_moq_namespace namespace the track to publish to belongs to
tn	The imquic_moq_name track name to publish to
track_alias	A unique numeric identifier to associate to the track in this subscription
parameters	The parameters to add to the request
track_extensions	List of track extensions to add, if any (added in v16)

Returns

0 in case of success, a negative integer otherwise

imquic_moq_publish_done()

int imquic_moq_publish_done	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_pub_done_code	status_code,
		const char *	reason )

Function to send a PUBLISH_DONE request.

Note

The streams count is handled by the library internally

Parameters

conn	The imquic_connection to send the request on
request_id	The unique request_id value associated to the subscription that's now done
status_code	The status code
reason	A reason phrase, if needed

Returns

0 in case of success, a negative integer otherwise

imquic_moq_publish_namespace()

int imquic_moq_publish_namespace	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_namespace *	tns,
		imquic_moq_request_parameters *	parameters )

Function to send a PUBLISH_NAMESPACE request.

Parameters

conn	The imquic_connection to send the request on
request_id	A unique request ID
tns	The imquic_moq_namespace namespace to publish_namespace
parameters	The parameters to add to the request

Returns

0 in case of success, a negative integer otherwise

imquic_moq_publish_namespace_done()

int imquic_moq_publish_namespace_done	(	imquic_connection *	conn,
		imquic_moq_namespace *	tns )

Function to send a PUBLISH_NAMESPACE_DONE request.

Parameters

conn	The imquic_connection to send the request on
tns	The imquic_moq_namespace namespace to publish_namespace_done

Returns

0 in case of success, a negative integer otherwise

imquic_moq_reject_fetch()

int imquic_moq_reject_fetch	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_request_error_code	error_code,
		const char *	reason,
		uint64_t	retry_interval )

Function to reject an incoming FETCH request.

Parameters

conn	The imquic_connection to send the request on
request_id	The unique request_id value associated to the subscription to reject
error_code	The error code to send back
reason	A string representation of the error, if needed
retry_interval	Retry interval in ms (added in v16, ignored otherwise)

Returns

0 in case of success, a negative integer otherwise

imquic_moq_reject_publish()

int imquic_moq_reject_publish	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_request_error_code	error_code,
		const char *	reason,
		uint64_t	retry_interval )

Function to reject an incoming PUBLISH request.

Parameters

conn	The imquic_connection to send the request on
request_id	The unique request_id value associated to the subscription to reject
error_code	The error code to send back
reason	A string representation of the error, if needed
retry_interval	Retry interval in ms (added in v16, ignored otherwise)

Returns

0 in case of success, a negative integer otherwise

imquic_moq_reject_publish_namespace()

int imquic_moq_reject_publish_namespace	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_request_error_code	error_code,
		const char *	reason,
		uint64_t	retry_interval )

Function to reject an incoming PUBLISH_NAMESPACE request.

Parameters

conn	The imquic_connection to send the request on
request_id	The request ID of the original PUBLISH_NAMESPACE request
error_code	The error code to send back
reason	A string representation of the error, if needed
retry_interval	Retry interval in ms (added in v16, ignored otherwise)

Returns

0 in case of success, a negative integer otherwise

imquic_moq_reject_request_update()

int imquic_moq_reject_request_update	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_request_error_code	error_code,
		const char *	reason,
		uint64_t	retry_interval )

Function to reject an incoming REQUEST_UPDATE request.

Note

This error response was only added in v15, which means it will be a no-action if you try to send it when negotiating an older version

Parameters

conn	The imquic_connection to send the request on
request_id	The unique request_id value associated to the subscription to reject
error_code	The error code to send back
reason	A string representation of the error, if needed
retry_interval	Retry interval in ms (added in v16, ignored otherwise)

Returns

0 in case of success, a negative integer otherwise

imquic_moq_reject_subscribe()

int imquic_moq_reject_subscribe	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_request_error_code	error_code,
		const char *	reason,
		uint64_t	track_alias,
		uint64_t	retry_interval )

Function to reject an incoming SUBSCRIBE request.

Parameters

conn	The imquic_connection to send the request on
request_id	The unique request_id value associated to the subscription to reject
error_code	The error code to send back
reason	A string representation of the error, if needed
track_alias	The unique track_alias value associated to the subscription to reject (ignored starting from v12)
retry_interval	Retry interval in ms (added in v16, ignored otherwise)

Returns

0 in case of success, a negative integer otherwise

imquic_moq_reject_subscribe_namespace()

int imquic_moq_reject_subscribe_namespace	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_request_error_code	error_code,
		const char *	reason,
		uint64_t	retry_interval )

Function to reject an incoming SUBSCRIBE_NAMESPACE request.

Parameters

conn	The imquic_connection to send the request on
request_id	The request ID of the original SUBSCRIBE_NAMESPACE request
error_code	The error code to send back
reason	A string representation of the error, if needed
retry_interval	Retry interval in ms (added in v16, ignored otherwise)

Returns

0 in case of success, a negative integer otherwise

imquic_moq_reject_track_status()

int imquic_moq_reject_track_status	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_request_error_code	error_code,
		const char *	reason,
		uint64_t	retry_interval )

Function to reject an incoming TRACK_STATUS request.

Note

Due to considerable changes between v12 and v13 on TRACK_STATUS , support for this request is disabled in versions earlier than v13

Parameters

conn	The imquic_connection to send the request on
request_id	The unique request_id value associated to the subscription to reject
error_code	The error code to send back
reason	A string representation of the error, if needed
retry_interval	Retry interval in ms (added in v16, ignored otherwise)

Returns

0 in case of success, a negative integer otherwise

imquic_moq_request_error_code_str()

const char * imquic_moq_request_error_code_str

(

imquic_moq_request_error_code

code

)

Helper function to serialize to string the name of a imquic_moq_request_error_code value.

Parameters

code	The imquic_moq_request_error_code value

Returns

The type name as a string, if valid, or NULL otherwise

imquic_moq_request_parameters_init_defaults()

void imquic_moq_request_parameters_init_defaults

(

imquic_moq_request_parameters *

parameters

)

Helper method to initialize some defaults values (where applicable) for the supported parameters.

Note

This doesn't set any of the 'set' properties to TRUE, it simply sets some defaults values for some properties (e.g., 128 for priority)

Parameters

parameters

The imquic_moq_request_parameters to initialize

imquic_moq_requests_blocked()

int imquic_moq_requests_blocked

(

imquic_connection *

conn

)

Function to send a REQUESTS_BLOCKED request.

Parameters

conn	The imquic_connection to send the request on

Returns

0 in case of success, a negative integer otherwise

imquic_moq_reset_stream_code_str()

const char * imquic_moq_reset_stream_code_str

(

imquic_moq_reset_stream_code

code

)

Helper function to serialize to string the name of a imquic_moq_reset_stream_code value.

Parameters

code	The imquic_moq_reset_stream_code value

Returns

The type name as a string, if valid, or NULL otherwise

imquic_moq_send_object()

int imquic_moq_send_object	(	imquic_connection *	conn,
		imquic_moq_object *	object )

Function to send a MoQ object.

Note

Depending on the delivery mode, to close the stream set the end_of_stream property to TRUE in the object. There's no need to do that when using OBJECT_STREAM or OBJECT_DATAGRAM . You can also close the stream when you don't have any object to send: just set the relevant properties (e.g., request_id, group_id and subgroup_id) without any payload, and the stack will find the right stream to close it.

Parameters

conn	The imquic_connection to send the object on
object	The imquic_moq_object object to send, including all relevant identifiers and the payload

Returns

0 in case of success, a negative integer otherwise

imquic_moq_set_connection_auth()

int imquic_moq_set_connection_auth	(	imquic_connection *	conn,
		uint8_t *	auth,
		size_t	authlen )

Method to provide credentials, as a client, on a new connection. If credentials need to provided, this must be done as soon as the connection is established, and before sending any MoQ message. A good place to do that is the callback fired when a new connection is available.

Note

The method only copies the pointer and not the data, so it's the 'sapplication responsibility to ensure the data addressed by the pointer will be valid when accessed.

Parameters

conn	The imquic_connection to set the version on
auth	The authentication info, if any
authlen	The size of the authentication info, if any

Returns

0 in case of success, a negative integer otherwise

imquic_moq_set_max_request_id()

int imquic_moq_set_max_request_id	(	imquic_connection *	conn,
		uint64_t	max_request_id )

Helper function to set the Maximum Request ID a subscriber can send.

Note

If invoked before the MoQ connection setup, it will be put in the setup parameter, otherwise it's sent in a MAX_REQUEST_ID request. Notice that whatever is passed to the request will be decremented by 1, as per the specification, meaning you cannot pass 0 as a value here

Parameters

conn	The imquic_connection to update
max_request_id	The Maximum Request ID to enforce

Returns

0 in case of success, a negative integer otherwise

imquic_moq_standalone_fetch()

int imquic_moq_standalone_fetch	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_namespace *	tns,
		imquic_moq_name *	tn,
		imquic_moq_location_range *	range,
		imquic_moq_request_parameters *	parameters )

Function to send a standalone FETCH request.

Parameters

conn	The imquic_connection to send the request on
request_id	A unique numeric identifier to associate to this subscription
tns	The imquic_moq_namespace namespace the track to fetch to belongs to
tn	The imquic_moq_name track name to fetch to
range	The range of groups/objects to fetch
parameters	The parameters to add to the request

Returns

0 in case of success, a negative integer otherwise

imquic_moq_subscribe()

int imquic_moq_subscribe	(	imquic_connection *	conn,
		uint64_t	request_id,
		uint64_t	track_alias,
		imquic_moq_namespace *	tns,
		imquic_moq_name *	tn,
		imquic_moq_request_parameters *	parameters )

Function to send a SUBSCRIBE request.

Parameters

conn	The imquic_connection to send the request on
request_id	A unique request ID to associate to this subscription
track_alias	A unique numeric identifier to associate to the track in this subscription (ignored starting from v12)
tns	The imquic_moq_namespace namespace the track to subscribe to belongs to
tn	The imquic_moq_name track name to subscribe to
parameters	The parameters to add to the request

Returns

0 in case of success, a negative integer otherwise

imquic_moq_subscribe_namespace()

int imquic_moq_subscribe_namespace	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_namespace *	tns,
		imquic_moq_subscribe_namespace_options	subscribe_options,
		imquic_moq_request_parameters *	parameters )

Function to send a SUBSCRIBE_NAMESPACE request.

Parameters

conn	The imquic_connection to send the request on
request_id	A unique request ID
tns	The imquic_moq_namespace namespace the track to subscribe to belongs to
subscribe_options	The subscribe options to add to the request (added in v16, ignored otherwise)
parameters	The parameters to add to the request

Returns

0 in case of success, a negative integer otherwise

imquic_moq_subscribe_namespace_options_str()

const char * imquic_moq_subscribe_namespace_options_str

(

imquic_moq_subscribe_namespace_options

type

)

Helper function to serialize to string the name of a imquic_moq_subscribe_namespace_options value.

Parameters

type	The imquic_moq_subscribe_namespace_options value

Returns

The type name as a string, if valid, or NULL otherwise

imquic_moq_track_status()

int imquic_moq_track_status	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_namespace *	tns,
		imquic_moq_name *	tn,
		imquic_moq_request_parameters *	parameters )

Function to send a TRACK_STATUS request.

Note

Due to considerable changes between v12 and v13 on TRACK_STATUS , support for this request is disabled in versions earlier than v13.

Parameters

conn	The imquic_connection to send the request on
request_id	A unique request ID to associate to this request
tns	The imquic_moq_namespace namespace the track to track_status to belongs to
tn	The imquic_moq_name track name to track_status to
parameters	The parameters to add to the request

Returns

0 in case of success, a negative integer otherwise

imquic_moq_track_str()

const char * imquic_moq_track_str	(	imquic_moq_name *	tn,
		char *	buffer,
		size_t	blen )

imquic_moq_unsubscribe()

int imquic_moq_unsubscribe	(	imquic_connection *	conn,
		uint64_t	request_id )

Function to send a UNSUBSCRIBE request.

Parameters

conn	The imquic_connection to send the request on
request_id	The unique request_id value associated to the subscription to unsubscribe from

Returns

0 in case of success, a negative integer otherwise

imquic_moq_unsubscribe_namespace()

int imquic_moq_unsubscribe_namespace	(	imquic_connection *	conn,
		uint64_t	request_id,
		imquic_moq_namespace *	tns )

Function to send a UNSUBSCRIBE_NAMESPACE request.

Note

Starting in v16, this doesn't actually send a request, but simply closes the bidirectional STREAM that was created for the subscription

Parameters

conn	The imquic_connection to send the request on
request_id	The request ID of the original SUBSCRIBE_NAMESPACE request (added in v15, ignored otherwise)
tns	The imquic_moq_namespace namespace to unsubscribe notifications from (deprecated in v15)

Returns

0 in case of success, a negative integer otherwise

imquic_moq_update_request()

int imquic_moq_update_request	(	imquic_connection *	conn,
		uint64_t	request_id,
		uint64_t	sub_request_id,
		imquic_moq_request_parameters *	parameters )

Function to send a REQUEST_UPDATE request.

Note

Version 14 of the draft introduced a new "Subscription Request ID", which means the meaning of request_id will change depending on which version the connection is using.

Parameters

conn	The imquic_connection to send the request on
request_id	Unique request_id value (before v14, this is associated to the subscription to update)
sub_request_id	Unique request_id value associated to the subscription to update (ignored before v14)
parameters	The parameters to add to the request

Returns

0 in case of success, a negative integer otherwise

imquic_moq_version_str()

const char * imquic_moq_version_str

(

imquic_moq_version

version

)

Helper function to serialize to string the name of a imquic_moq_version property.

Parameters

version

The imquic_moq_version property

Returns

The version name as a string, if valid, or NULL otherwise

imquic_set_fetch_accepted_cb()

void imquic_set_fetch_accepted_cb	(	imquic_endpoint *	endpoint,
		void(*	fetch_accepted )(imquic_connection *conn, uint64_t request_id, imquic_moq_location *largest, imquic_moq_request_parameters *parameters, GList *track_extensions) )

Configure the callback function to be notified when an FETCH we previously sent was accepted.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
fetch_accepted	Pointer to the function that will fire when an FETCH is accepted

imquic_set_fetch_error_cb()

void imquic_set_fetch_error_cb	(	imquic_endpoint *	endpoint,
		void(*	fetch_error )(imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t retry_interval) )

Configure the callback function to be notified when an FETCH we previously sent was rejected with an error.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
fetch_error	Pointer to the function that will fire when an FETCH is rejected

imquic_set_incoming_fetch_cancel_cb()

void imquic_set_incoming_fetch_cancel_cb	(	imquic_endpoint *	endpoint,
		void(*	incoming_fetch_cancel )(imquic_connection *conn, uint64_t request_id) )

Configure the callback function to be notified when there's an incoming FETCH_CANCEL request.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
incoming_fetch_cancel	Pointer to the function that will handle the incoming FETCH_CANCEL

imquic_set_incoming_goaway_cb()

void imquic_set_incoming_goaway_cb	(	imquic_endpoint *	endpoint,
		void(*	incoming_goaway )(imquic_connection *conn, const char *uri) )

Configure the callback function to be notified when there's an incoming GOAWAY request.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
incoming_goaway	Pointer to the function that will handle the incoming GOAWAY

imquic_set_incoming_joining_fetch_cb()

void imquic_set_incoming_joining_fetch_cb	(	imquic_endpoint *	endpoint,
		void(*	incoming_joining_fetch )(imquic_connection *conn, uint64_t request_id, uint64_t joining_request_id, gboolean absolute, uint64_t joining_start, imquic_moq_request_parameters *parameters) )

Configure the callback function to be notified when there's an incoming joining FETCH request.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
incoming_joining_fetch	Pointer to the function that will handle the incoming FETCH

imquic_set_incoming_moq_connection_cb()

void imquic_set_incoming_moq_connection_cb	(	imquic_endpoint *	endpoint,
		uint64_t(*	incoming_moq_connection )(imquic_connection *conn, uint8_t *auth, size_t authlen) )

Configure the callback function to be notified, as a server, when a CLIENT_SETUP is received. This is a chance, for instance, to evaluate the credentials that were provided. It's the application responsibility to accept or reject the connection at this point: returning 0 will accept the connection, while returning an error code will reject and close it. Connections are automatically accepted if this callback is not configured.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
incoming_moq_connection	Pointer to the function that will be invoked when MoQ is ready to be used

imquic_set_incoming_namespace_cb()

void imquic_set_incoming_namespace_cb	(	imquic_endpoint *	endpoint,
		void(*	incoming_namespace )(imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns) )

Configure the callback function to be notified when there's an incoming NAMESPACE request.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
incoming_namespace	Pointer to the function that will handle the incoming NAMESPACE

imquic_set_incoming_namespace_done_cb()

void imquic_set_incoming_namespace_done_cb	(	imquic_endpoint *	endpoint,
		void(*	incoming_namespace_done )(imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns) )

Configure the callback function to be notified when there's an incoming NAMESPACE_DONE request.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
incoming_namespace_done	Pointer to the function that will handle the incoming NAMESPACE_DONE

imquic_set_incoming_object_cb()

void imquic_set_incoming_object_cb	(	imquic_endpoint *	endpoint,
		void(*	incoming_object )(imquic_connection *conn, imquic_moq_object *object) )

Configure the callback function to be notified when there's an incoming MoQ object, independently of how it was multiplexed on the wire.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
incoming_object	Pointer to the function that will handle the incoming MoQ object

imquic_set_incoming_publish_cb()

void imquic_set_incoming_publish_cb	(	imquic_endpoint *	endpoint,
		void(*	incoming_publish )(imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns, imquic_moq_name *tn, uint64_t track_alias, imquic_moq_request_parameters *parameters, GList *track_extensions) )

Configure the callback function to be notified when there's an incoming PUBLISH request.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
incoming_publish	Pointer to the function that will handle the incoming PUBLISH

imquic_set_incoming_publish_namespace_cancel_cb()

void imquic_set_incoming_publish_namespace_cancel_cb	(	imquic_endpoint *	endpoint,
		void(*	incoming_publish_namespace_cancel )(imquic_connection *conn, imquic_moq_namespace *tns, imquic_moq_request_error_code error_code, const char *reason) )

Configure the callback function to be notified when there's an incoming PUBLISH_NAMESPACE_CANCEL request.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
incoming_publish_namespace_cancel	Pointer to the function that will handle the incoming PUBLISH_NAMESPACE_CANCEL

imquic_set_incoming_publish_namespace_cb()

void imquic_set_incoming_publish_namespace_cb	(	imquic_endpoint *	endpoint,
		void(*	incoming_publish_namespace )(imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns, imquic_moq_request_parameters *parameters) )

Configure the callback function to be notified when there's an incoming PUBLISH_NAMESPACE request.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
incoming_publish_namespace	Pointer to the function that will handle the incoming PUBLISH_NAMESPACE

imquic_set_incoming_standalone_fetch_cb()

void imquic_set_incoming_standalone_fetch_cb	(	imquic_endpoint *	endpoint,
		void(*	incoming_standalone_fetch )(imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns, imquic_moq_name *tn, imquic_moq_location_range *range, imquic_moq_request_parameters *parameters) )

Configure the callback function to be notified when there's an incoming standalone FETCH request.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
incoming_standalone_fetch	Pointer to the function that will handle the incoming FETCH

imquic_set_incoming_subscribe_cb()

void imquic_set_incoming_subscribe_cb	(	imquic_endpoint *	endpoint,
		void(*	incoming_subscribe )(imquic_connection *conn, uint64_t request_id, uint64_t track_alias, imquic_moq_namespace *tns, imquic_moq_name *tn, imquic_moq_request_parameters *parameters) )

Configure the callback function to be notified when there's an incoming SUBSCRIBE request.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
incoming_subscribe	Pointer to the function that will handle the incoming SUBSCRIBE

imquic_set_incoming_subscribe_namespace_cb()

void imquic_set_incoming_subscribe_namespace_cb	(	imquic_endpoint *	endpoint,
		void(*	incoming_subscribe_namespace )(imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns, imquic_moq_subscribe_namespace_options subscribe_options, imquic_moq_request_parameters *parameters) )

Configure the callback function to be notified when there's an incoming SUBSCRIBE_NAMESPACE request.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
incoming_subscribe_namespace	Pointer to the function that will handle the incoming SUBSCRIBE_NAMESPACE

imquic_set_incoming_track_status_cb()

void imquic_set_incoming_track_status_cb	(	imquic_endpoint *	endpoint,
		void(*	incoming_track_status )(imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns, imquic_moq_name *tn, imquic_moq_request_parameters *parameters) )

Configure the callback function to be notified when there's an incoming TRACK_STATUS request.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
incoming_track_status	Pointer to the function that will handle the incoming TRACK_STATUS

imquic_set_incoming_unsubscribe_cb()

void imquic_set_incoming_unsubscribe_cb	(	imquic_endpoint *	endpoint,
		void(*	incoming_unsubscribe )(imquic_connection *conn, uint64_t request_id) )

Configure the callback function to be notified when there's an incoming UNSUBSCRIBE request.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
incoming_unsubscribe	Pointer to the function that will handle the incoming UNSUBSCRIBE

imquic_set_incoming_unsubscribe_namespace_cb()

void imquic_set_incoming_unsubscribe_namespace_cb	(	imquic_endpoint *	endpoint,
		void(*	incoming_unsubscribe_namespace )(imquic_connection *conn, uint64_t request_id, imquic_moq_namespace *tns) )

Configure the callback function to be notified when there's an incoming UNSUBSCRIBE_NAMESPACE request.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
incoming_unsubscribe_namespace	Pointer to the function that will handle the incoming UNSUBSCRIBE_NAMESPACE

imquic_set_moq_connection_gone_cb()

void imquic_set_moq_connection_gone_cb	(	imquic_endpoint *	endpoint,
		void(*	moq_connection_gone )(imquic_connection *conn) )

Configure the callback function to be notified when an existing MoQ connection handled by this endpoint has been closed/shut down.

Note

This is a good place to release the last reference to the connection

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
moq_connection_gone	Pointer to the function that will be invoked when a MoQ connection is gone

imquic_set_moq_ready_cb()

void imquic_set_moq_ready_cb	(	imquic_endpoint *	endpoint,
		void(*	moq_ready )(imquic_connection *conn) )

Configure the callback function to be notified when a MoQ connection has been successfully established. After this, the MoQ APIs can be used to start exchanging MoQ messages.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
moq_ready	Pointer to the function that will be invoked when MoQ is ready to be used

imquic_set_new_moq_connection_cb()

void imquic_set_new_moq_connection_cb	(	imquic_endpoint *	endpoint,
		void(*	new_moq_connection )(imquic_connection *conn, void *user_data) )

Configure the callback function to be notified about new QUIC connections on the configured endpoint. For a server, it will be triggered any time a client successfully connects to the server; for a client, it will be triggered when the client successfully connects to the server. Notice that this precedes the MoQ setup/handshakes, which means you'll need to wait until the callback set in imquic_set_moq_ready_cb is fired, before being able to use the MoQ API for publishing/subscribing.

Note

This is a good place to obtain the first reference to a connection.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
new_moq_connection	Pointer to the function that will be invoked on the new MoQ connection

imquic_set_publish_accepted_cb()

void imquic_set_publish_accepted_cb	(	imquic_endpoint *	endpoint,
		void(*	publish_accepted )(imquic_connection *conn, uint64_t request_id, imquic_moq_request_parameters *parameters) )

Configure the callback function to be notified when a PUBLISH we previously sent was accepted.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
publish_accepted	Pointer to the function that will fire when a PUBLISH is accepted

imquic_set_publish_done_cb()

void imquic_set_publish_done_cb	(	imquic_endpoint *	endpoint,
		void(*	publish_done )(imquic_connection *conn, uint64_t request_id, imquic_moq_pub_done_code status_code, uint64_t streams_count, const char *reason) )

Configure the callback function to be notified when a PUBLISH we received or a SUBSCRIBE we sent is now done.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
publish_done	Pointer to the function that will fire when a PUBLSH or SUBSCRIBE is done

imquic_set_publish_error_cb()

void imquic_set_publish_error_cb	(	imquic_endpoint *	endpoint,
		void(*	publish_error )(imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t retry_interval) )

Configure the callback function to be notified when a PUBLISH we previously sent was rejected with an error.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
publish_error	Pointer to the function that will fire when a PUBLISH is rejected

imquic_set_publish_namespace_accepted_cb()

void imquic_set_publish_namespace_accepted_cb	(	imquic_endpoint *	endpoint,
		void(*	publish_namespace_accepted )(imquic_connection *conn, uint64_t request_id, imquic_moq_request_parameters *parameters) )

Configure the callback function to be notified when an PUBLISH_NAMESPACE we previously sent was accepted.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
publish_namespace_accepted	Pointer to the function that will fire when a PUBLISH_NAMESPACE is accepted

imquic_set_publish_namespace_done_cb()

void imquic_set_publish_namespace_done_cb	(	imquic_endpoint *	endpoint,
		void(*	publish_namespace_done )(imquic_connection *conn, imquic_moq_namespace *tns) )

Configure the callback function to be notified when there's an incoming PUBLISH_NAMESPACE_DONE request.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
publish_namespace_done	Pointer to the function that will handle the incoming PUBLISH_NAMESPACE_DONE

imquic_set_publish_namespace_error_cb()

void imquic_set_publish_namespace_error_cb	(	imquic_endpoint *	endpoint,
		void(*	publish_namespace_error )(imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t retry_interval) )

Configure the callback function to be notified when an PUBLISH_NAMESPACE we previously sent was rejected with an error.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
publish_namespace_error	Pointer to the function that will fire when a PUBLISH_NAMESPACE is rejected

imquic_set_request_update_accepted_cb()

void imquic_set_request_update_accepted_cb	(	imquic_endpoint *	endpoint,
		void(*	request_update_accepted )(imquic_connection *conn, uint64_t request_id, imquic_moq_request_parameters *parameters) )

Configure the callback function to be notified when an OK is received for a REQUEST_UPDATE we previously sent.

Note

This was only added in v15, and so will never be fired on older versions.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
request_update_accepted	Pointer to the function that will fire when a REQUEST_UPDATE is acknowledged

imquic_set_request_update_error_cb()

void imquic_set_request_update_error_cb	(	imquic_endpoint *	endpoint,
		void(*	request_update_error )(imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t retry_interval) )

Configure the callback function to be notified when a REQUEST_UPDATE we previously sent was rejected with an error.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
request_update_error	Pointer to the function that will fire when a SUBSCRIBE is rejected

imquic_set_request_updated_cb()

void imquic_set_request_updated_cb	(	imquic_endpoint *	endpoint,
		void(*	request_updated )(imquic_connection *conn, uint64_t request_id, uint64_t sub_request_id, imquic_moq_request_parameters *parameters) )

Configure the callback function to be notified when an update is received for a request (e.g., a SUBSCRIBE ) we previously sent.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
request_updated	Pointer to the function that will fire when a SUBSCRIBE is done

imquic_set_requests_blocked_cb()

void imquic_set_requests_blocked_cb	(	imquic_endpoint *	endpoint,
		void(*	requests_blocked )(imquic_connection *conn, uint64_t max_request_id) )

Configure the callback function to be notified when there's an incoming REQUESTS_BLOCKED request.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
requests_blocked	Pointer to the function that will handle the incoming REQUESTS_BLOCKED

imquic_set_subscribe_accepted_cb()

void imquic_set_subscribe_accepted_cb	(	imquic_endpoint *	endpoint,
		void(*	subscribe_accepted )(imquic_connection *conn, uint64_t request_id, uint64_t track_alias, imquic_moq_request_parameters *parameters, GList *track_extensions) )

Configure the callback function to be notified when a SUBSCRIBE we previously sent was accepted.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
subscribe_accepted	Pointer to the function that will fire when a SUBSCRIBE is accepted

imquic_set_subscribe_error_cb()

void imquic_set_subscribe_error_cb	(	imquic_endpoint *	endpoint,
		void(*	subscribe_error )(imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t track_alias, uint64_t retry_interval) )

Configure the callback function to be notified when a SUBSCRIBE we previously sent was rejected with an error.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
subscribe_error	Pointer to the function that will fire when a SUBSCRIBE is rejected

imquic_set_subscribe_namespace_accepted_cb()

void imquic_set_subscribe_namespace_accepted_cb	(	imquic_endpoint *	endpoint,
		void(*	subscribe_namespace_accepted )(imquic_connection *conn, uint64_t request_id, imquic_moq_request_parameters *parameters) )

Configure the callback function to be notified when an SUBSCRIBE_NAMESPACE we previously sent was accepted.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
subscribe_namespace_accepted	Pointer to the function that will fire when an SUBSCRIBE_NAMESPACE is accepted

imquic_set_subscribe_namespace_error_cb()

void imquic_set_subscribe_namespace_error_cb	(	imquic_endpoint *	endpoint,
		void(*	subscribe_namespace_error )(imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t retry_interval) )

Configure the callback function to be notified when an SUBSCRIBE_NAMESPACE we previously sent was rejected with an error.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
subscribe_namespace_error	Pointer to the function that will fire when an SUBSCRIBE_NAMESPACE is rejected

imquic_set_track_status_accepted_cb()

void imquic_set_track_status_accepted_cb	(	imquic_endpoint *	endpoint,
		void(*	track_status_accepted )(imquic_connection *conn, uint64_t request_id, uint64_t track_alias, imquic_moq_request_parameters *parameters) )

Configure the callback function to be notified when a TRACK_STATUS we previously sent was accepted.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
track_status_accepted	Pointer to the function that will fire when a TRACK_STATUS is accepted

imquic_set_track_status_error_cb()

void imquic_set_track_status_error_cb	(	imquic_endpoint *	endpoint,
		void(*	track_status_error )(imquic_connection *conn, uint64_t request_id, imquic_moq_request_error_code error_code, const char *reason, uint64_t retry_interval) )

Configure the callback function to be notified when a TRACK_STATUS we previously sent was rejected with an error.

Parameters

endpoint	The imquic_endpoint (imquic_server or imquic_client) to configure
track_status_error	Pointer to the function that will fire when a TRACK_STATUS is rejected
